WATER PUMP 2″ YANMAR ELECT

The BE Yanmar Diesel powered highwater transfer pumps features a high-quality cast aluminium pump body and single cast iron impeller in a heavy duty steel roll frame. These quality units are the consumers choice for high flow water transfer, tank filling, dewatering and water tankers.

Features

• Yanmar 4.8 hp engine recoil start engine with optional electric start available
• High-Quality Cast Aluminium
• Pump Body and Cast Iron Impeller
• Galvanized Steel Roll Frame
• Standard with Carbon Ceramic Mechanical Seal and NBR Elastomers
• 3-year pump warranty
• Fast self-priming from 7m
• Cast iron open impeller
• Replaceable suction and discharge port-making servicing the check valve easy
• Choice of recoil and electric start Yanmar diesel engine (2-year manufacturer warranty)
• Robust frame with anti-vibration mounts
• Exceptional efficiencies
• Pump body components made from high-grade marine aluminium that resists corrosion providing longer life
• Optional viton seal kit to permit pumping of diesel fuel or some ag chemicals
• Free battery pack included with electric start units

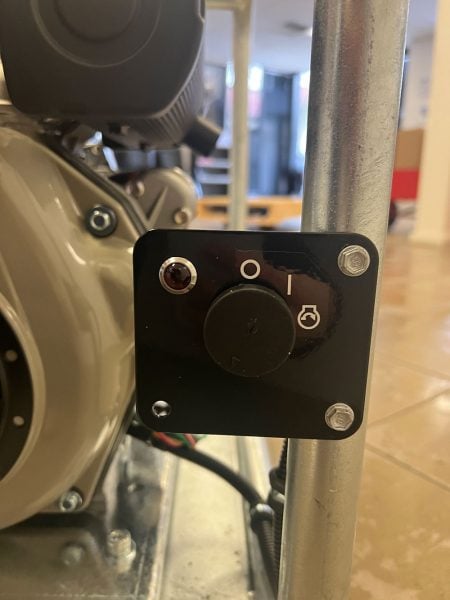

• Yanmar Electric Start units feature fuel solenoid and recoil backup
• Mine spec options available featuring upgrades including, emergency stop, battery isolation, fire extinguisher, hi-vis tape
• Viton seal kits available for 124 20480 & 124 30480 apply part # 125 85.572.586V
• Designed to be ultra-reliable and economic, BE diesel-powered transfer pumps come in sizes ranging from 2” to 6” inlet/outlet.

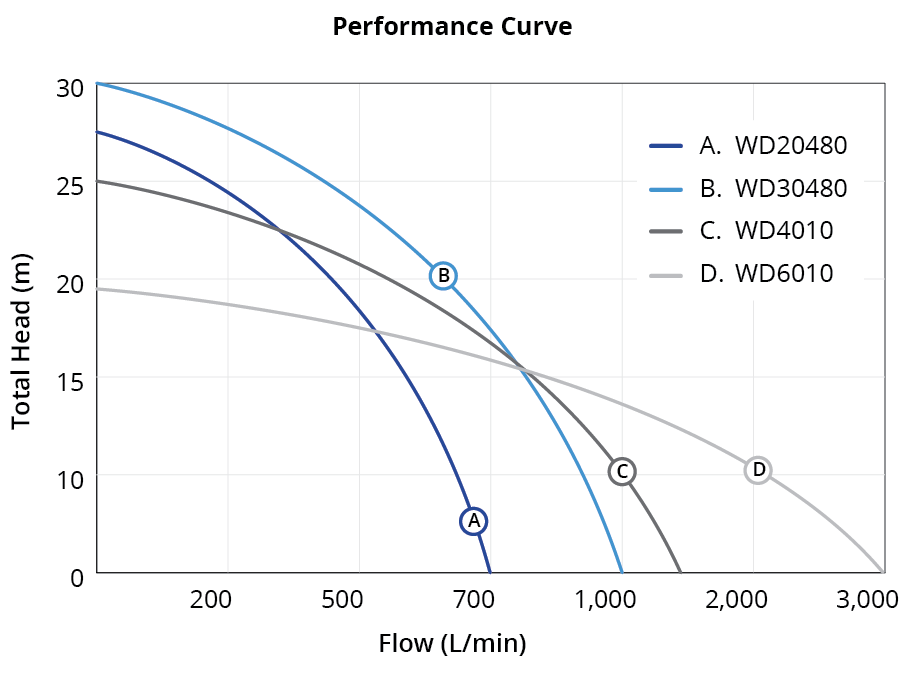

• BE transfer pumps transfer high volumes of liquid at relatively low pressure with flows of up to 3000 L/min and heads up to 30 m.
• BE transfer pumps have big open cast iron impellers that pump compressible solids in suspension.

Pump Materials

• Front Casing: Marine Grade Aluminium
• Volute: Marine Grade Aluminium
• Back Plate: Marine Grade Aluminium
• Mechanical Seal: Carbon/Ceramic
• Outlet: Marine Grade Aluminium
• Casing Bolts: Zinc Plated Steel
• Check Valve: Nitrile Rubber
• Prime & Drain Plug: Polycarbonate
• Priming & Drain Plug O rings: Nitrile Rubber (NBR)
• Finish: Chrome Aluminium for 20480 & 30480 series
• Impeller: Cast Iron

Applications

• High-volume water transfer
• Fast-fill tanker applications
• Flood irrigation
• Construction site dewatering

Specifications

• Engine: Yanmar L48 4.8 hp Recoil Start
• Max Flow Rate: 700 L/min
• Max Head: 28 m
• Suction Capacity: 7 m
• Inlet/Outlet: 2”
• Fuel Tank: 2.4 L
• Unit & Frame: Robust frame with anti-vibration mounts
