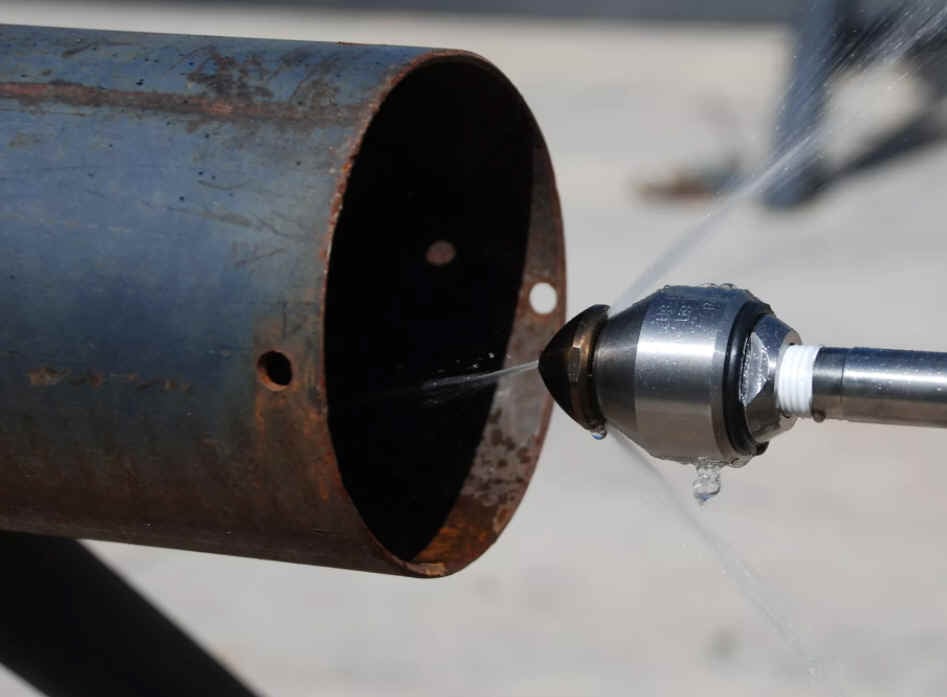

Warthog Nozzle WV 1/4″

The WV-1/4-LK uses StoneAge’s flow-through technology and features a revolutionary high-speed rotating design with no high-pressure seals or bearings to service making it low maintenance. It cleans lines as small as 2” (51 mm) with long sweeping elbows.

The tool has a 1/4” NPT pipe thread inlet and can pass through long radius elbows in lines 2” (51 mm) and larger if a 1/4” NPT hose fitting is used.

Features

• Rotational speed controlled by pressure/flow
• Excellent for navigating elbows
• Clears grease, fat, ice and fine roots

Specifications

• Nozzle Pressure: 1200-5000 Psi
• Flow: 26-30 L/min
• Jet Angle Front: 1 @ 15°
• Jet Angle Back: 2@ 55°

Note: No repair available for WV series

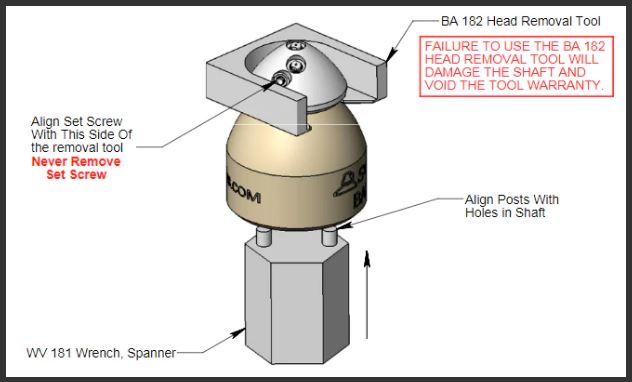

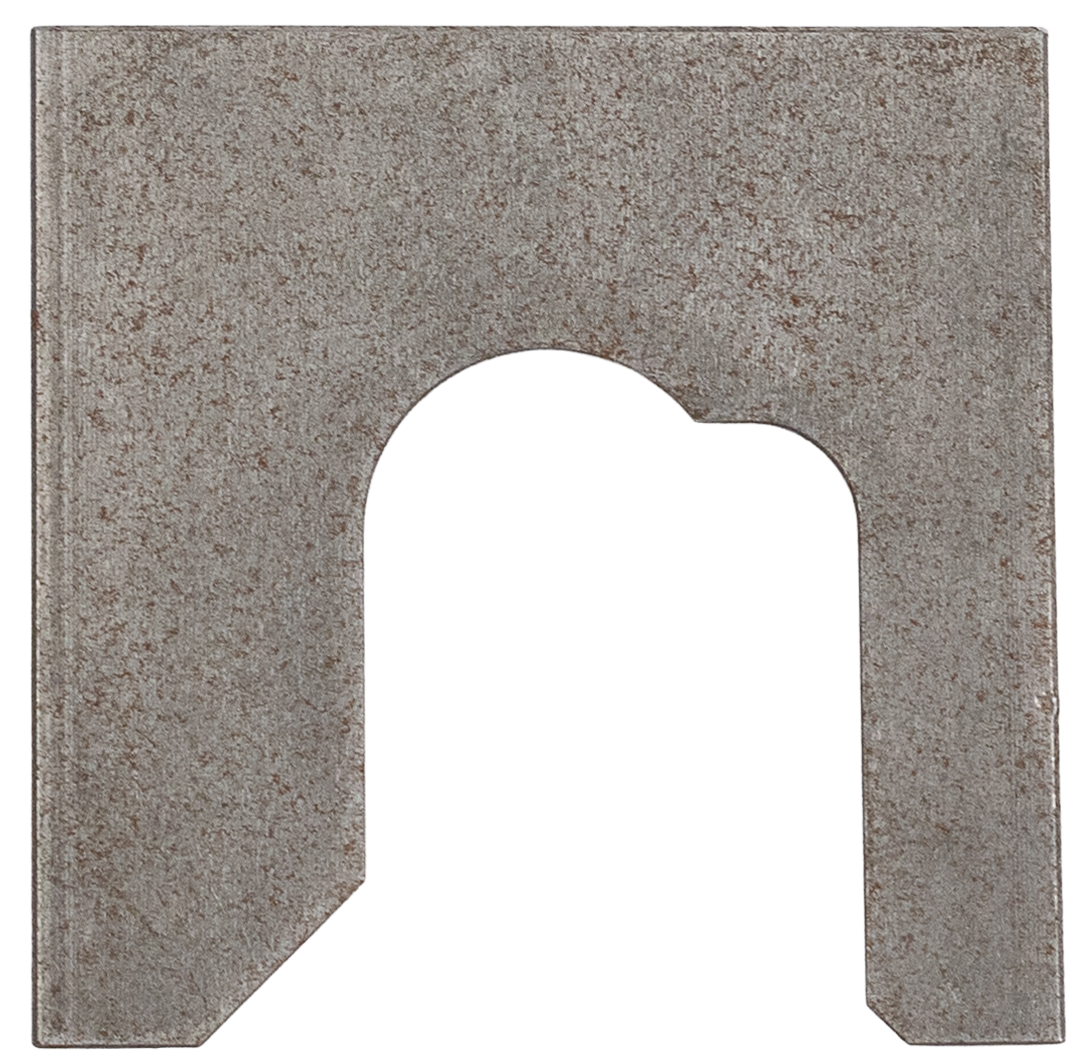

WARNING: Dismantling of the Nozzle must be undertaken with WV181 and BA182 Change Out tools. Failure to do this will damage the nozzle head and void the warranty

Repairing your WV Nozzle
