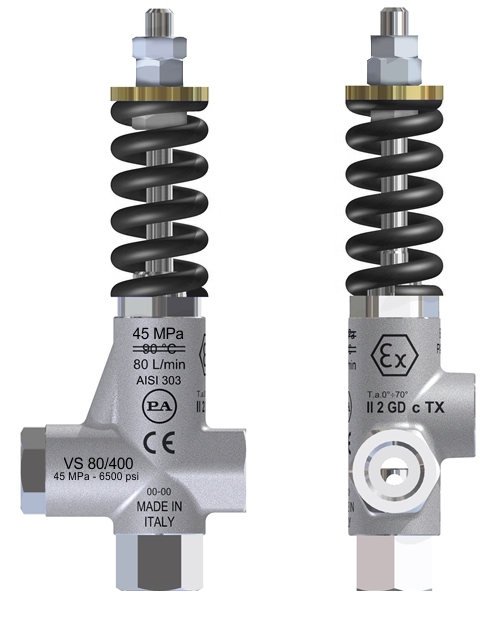

Vs 80/400 – Aisi 303 – Atex
The valves supplied are NOT PRESSURE ADJUSTED. They become a SAFETY device when adjusted by the installer on the machine.
Specifications
- Rated Pressure: 400 bar – 40 MPa – 5800 Psi
- Permissible Pressure: 450 bar – 45 MPa – 6500 Psi
- Rated Flow Rate: 80 L/min – 21 USGpm
- Rated Temperature: 70°C – 158°F
- Inlet: 1/2 Bsp F
- Bypass: 1/2 Bsp F
- Certification: ATEX
- Weight: 1276 gr. – 45 oz.
- Material: Stainless steel 303
