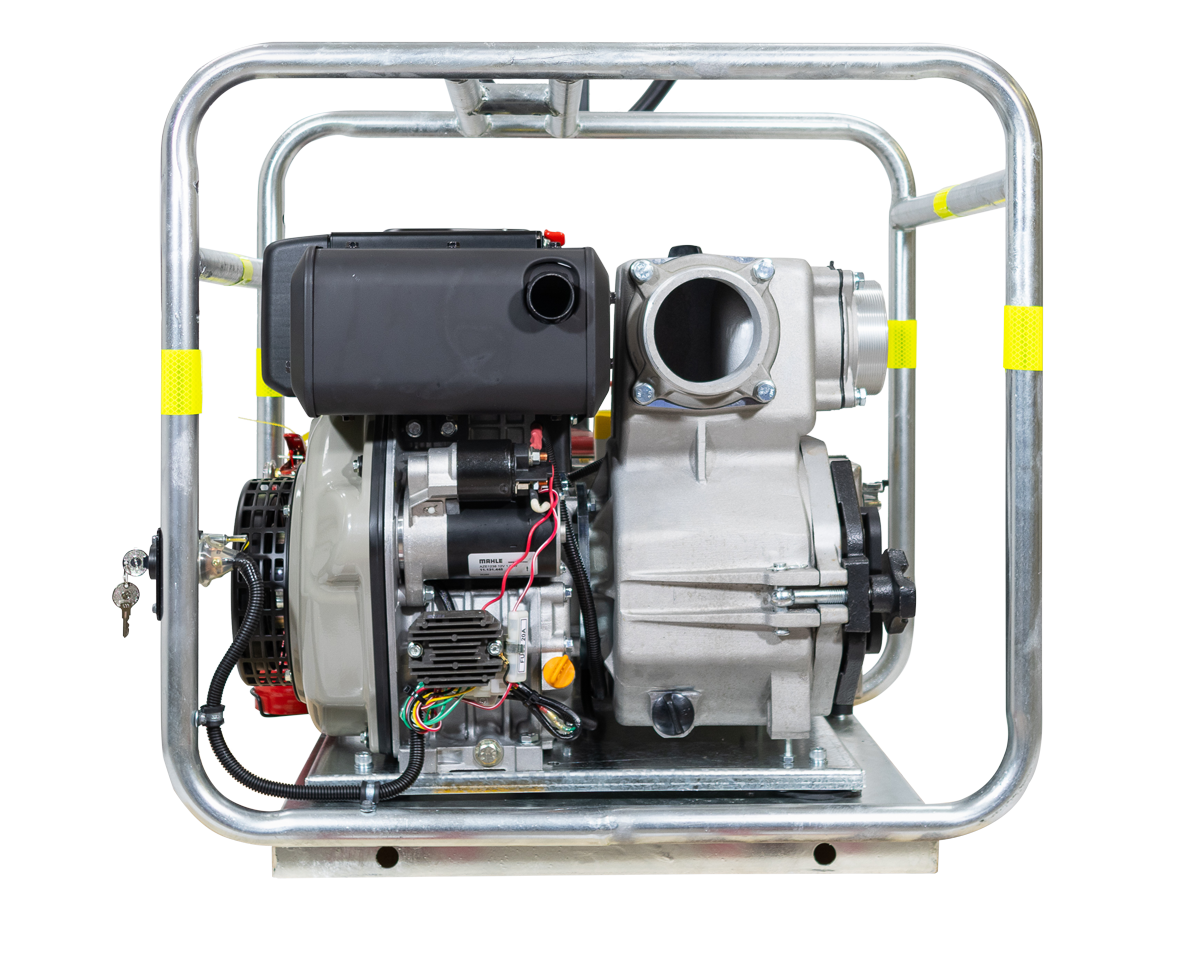

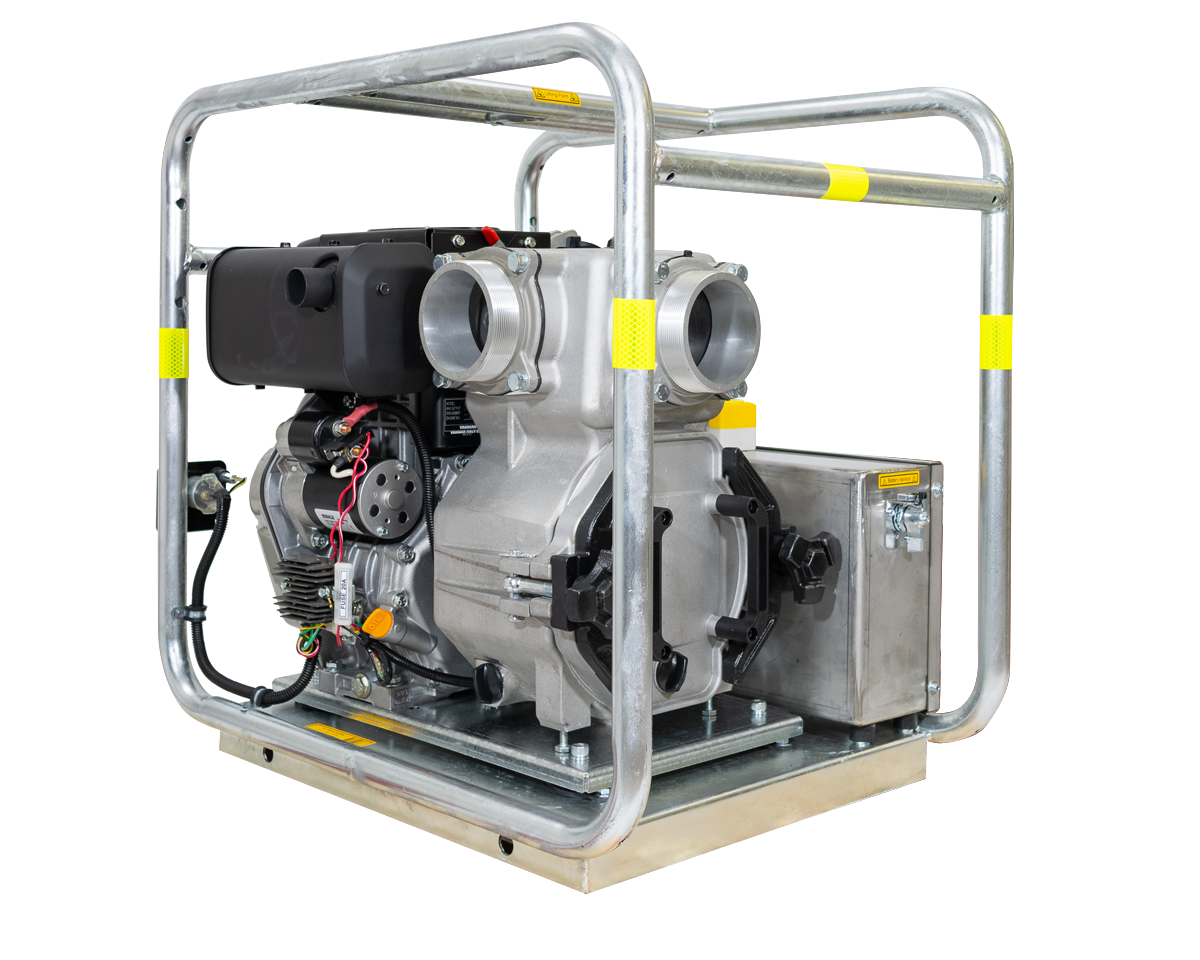

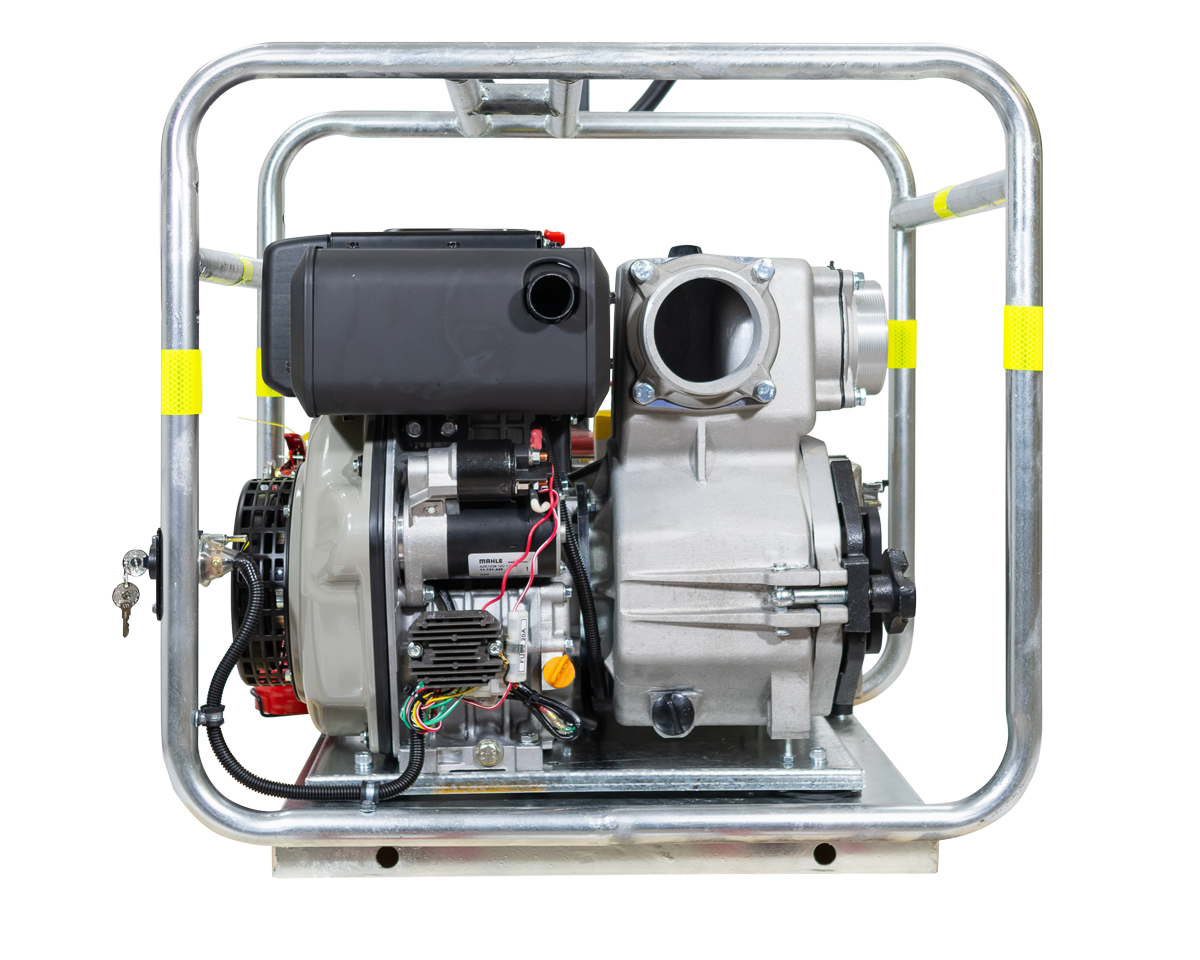

Open Trash Pump 4″ Yanmar Mine

The ideal choice for moving water that contains solids and debris

Built in Australia, our Trash Pumps feature a heavy-duty cast iron pump body with a cast iron open impeller. A removable inspection door allows rapid cleaning of the pump body without pipe work disconnection, handling solids capably up to 25 mm. A great choice for tasks such as moving flood water, dewatering construction sites, wastewater handling, effluent pump out, and mine waste pump out.

• Upgraded silicon carbine mechanical seal
• High-grade ductile cast iron impeller & volute

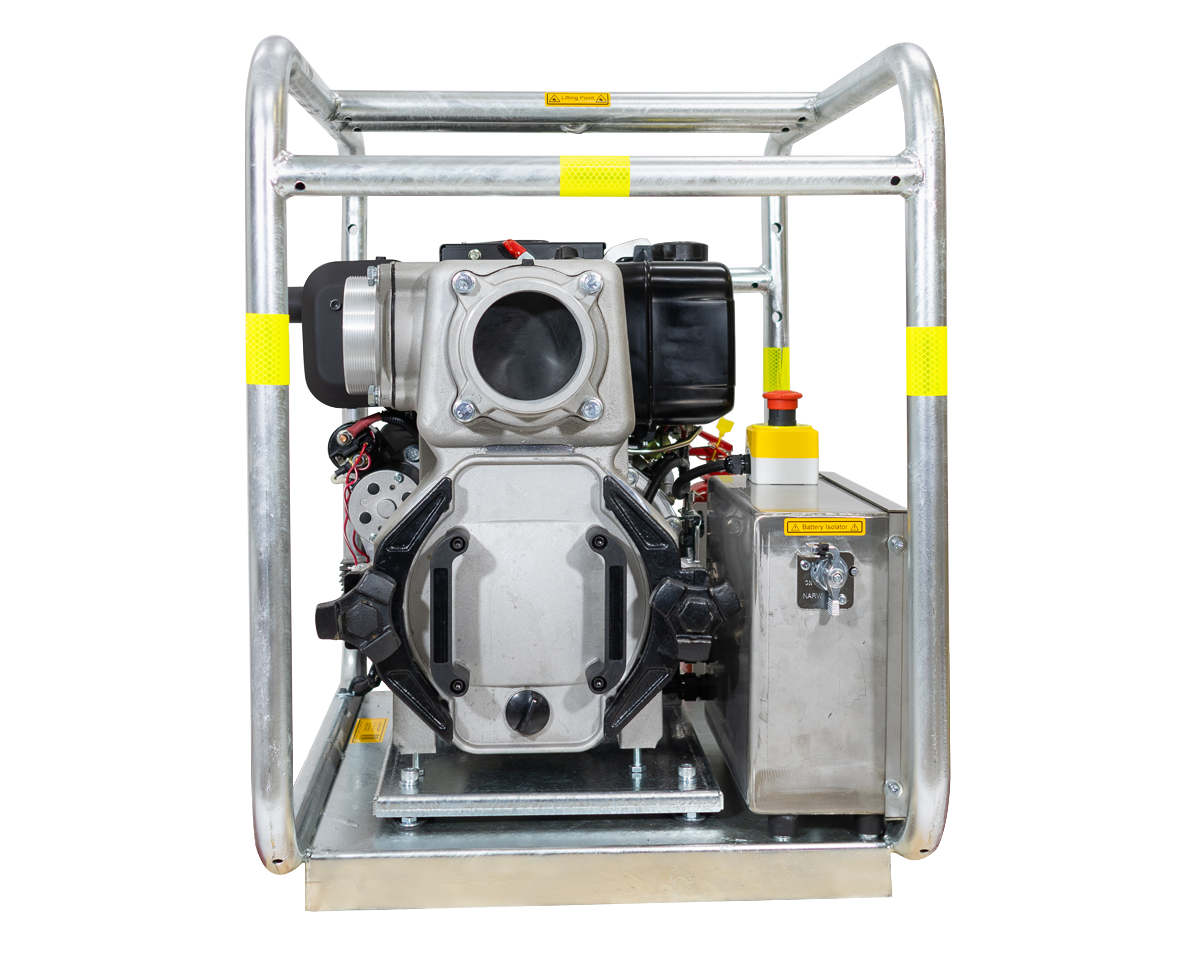

• User-friendly removable inspection door
• Big open non clog style impeller
• Front-mounted clean-out port
• Super robust cast iron body
• Rugged roll frame
• Coupling and strainer kit included
• Honda Petrol, Yanmar Diesel, or Kohler Diesel engine options, all with oil alert & low oil protection

Applications

• Construction site dewatering
• Waste water handling
• Effluent pump out
• Livestock waste water handling
• Solid laden min waste pump

Pump Materials

• Front casing: Cast Alloy
• Volute: Ductile grade cast alloy
• Back Plate: Cast Alloy
• Mechanical Seal: Silicon carbide
• Outlet: Cast Iron
• Casing Bolts: Zinc Plated Steel
• Check Valve: Nitrile Rubber
• Prime & Drain Plug: Polycarbonate
• Priming & Drain Plug O rings: Nitrile Rubber (NBR)
• Impeller: High-grade ductile cast iron, non-clog, open type

Features

• Engine: Yanmar
• Inlet / Outlet: 4” BSP
• Open impeller with solids clearance to 1”
• Enclosed roll frame

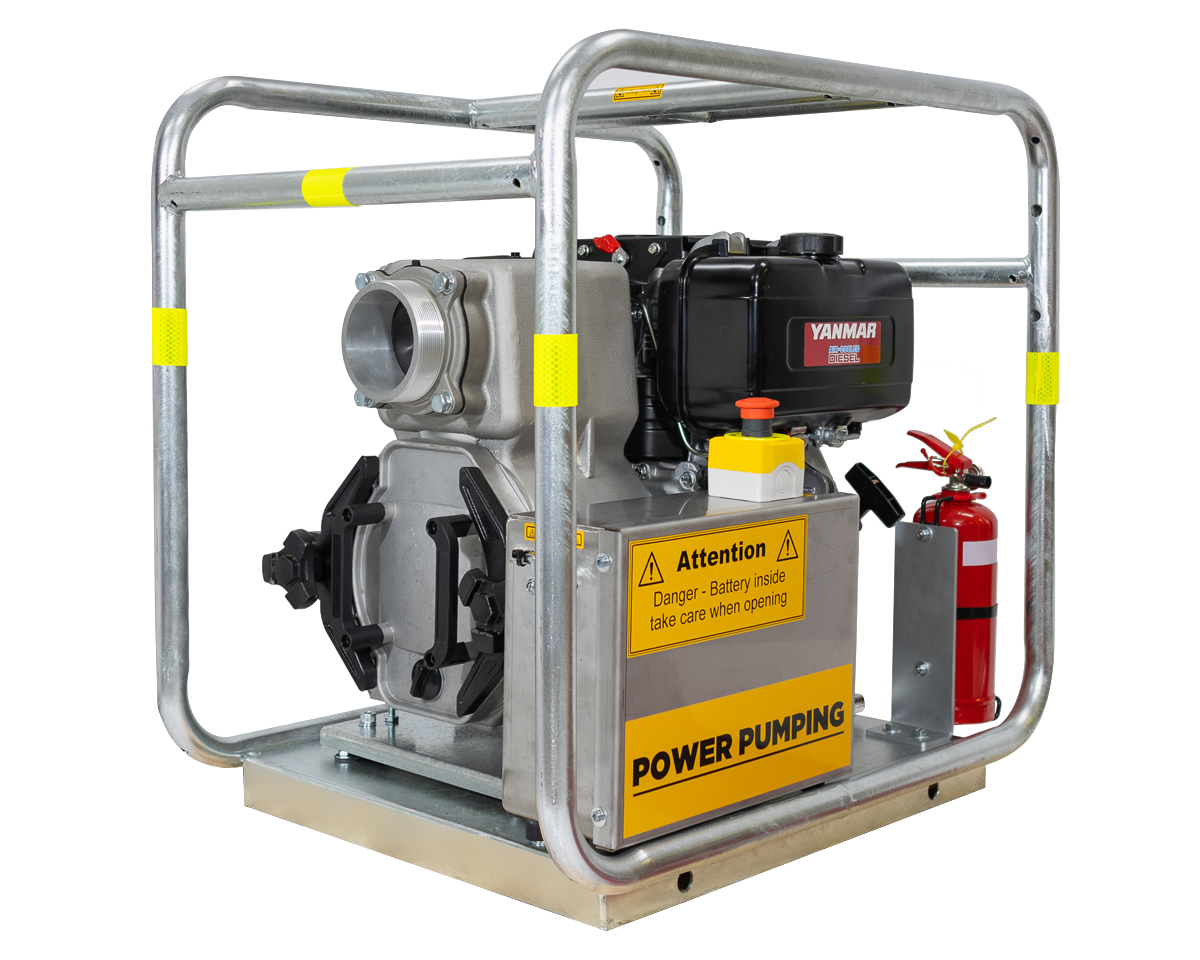

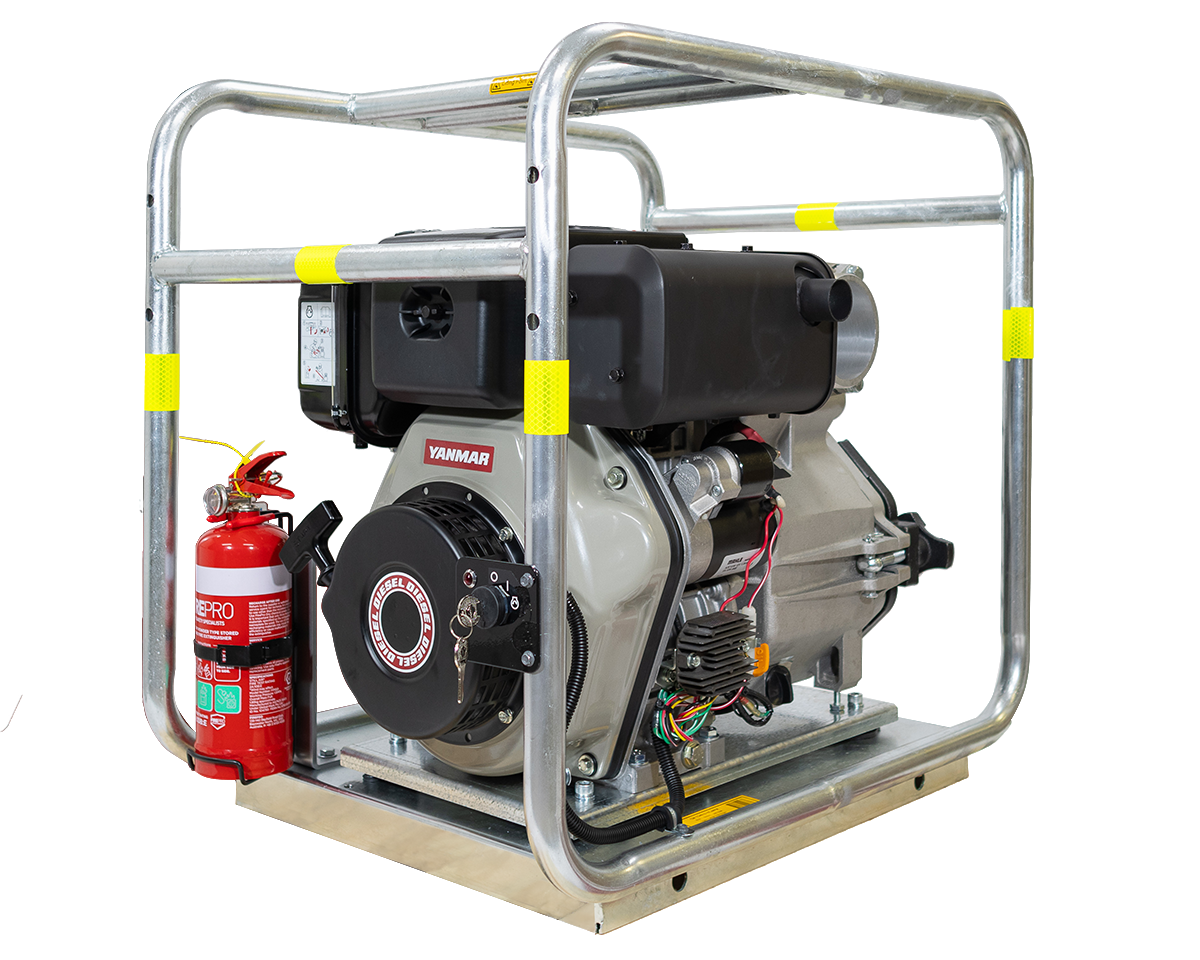

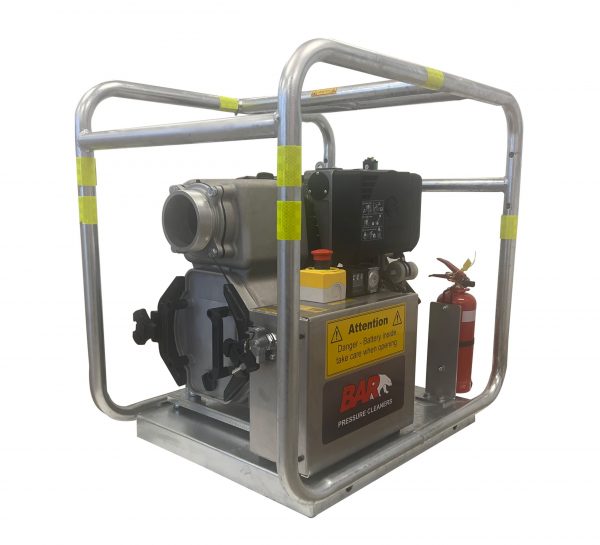

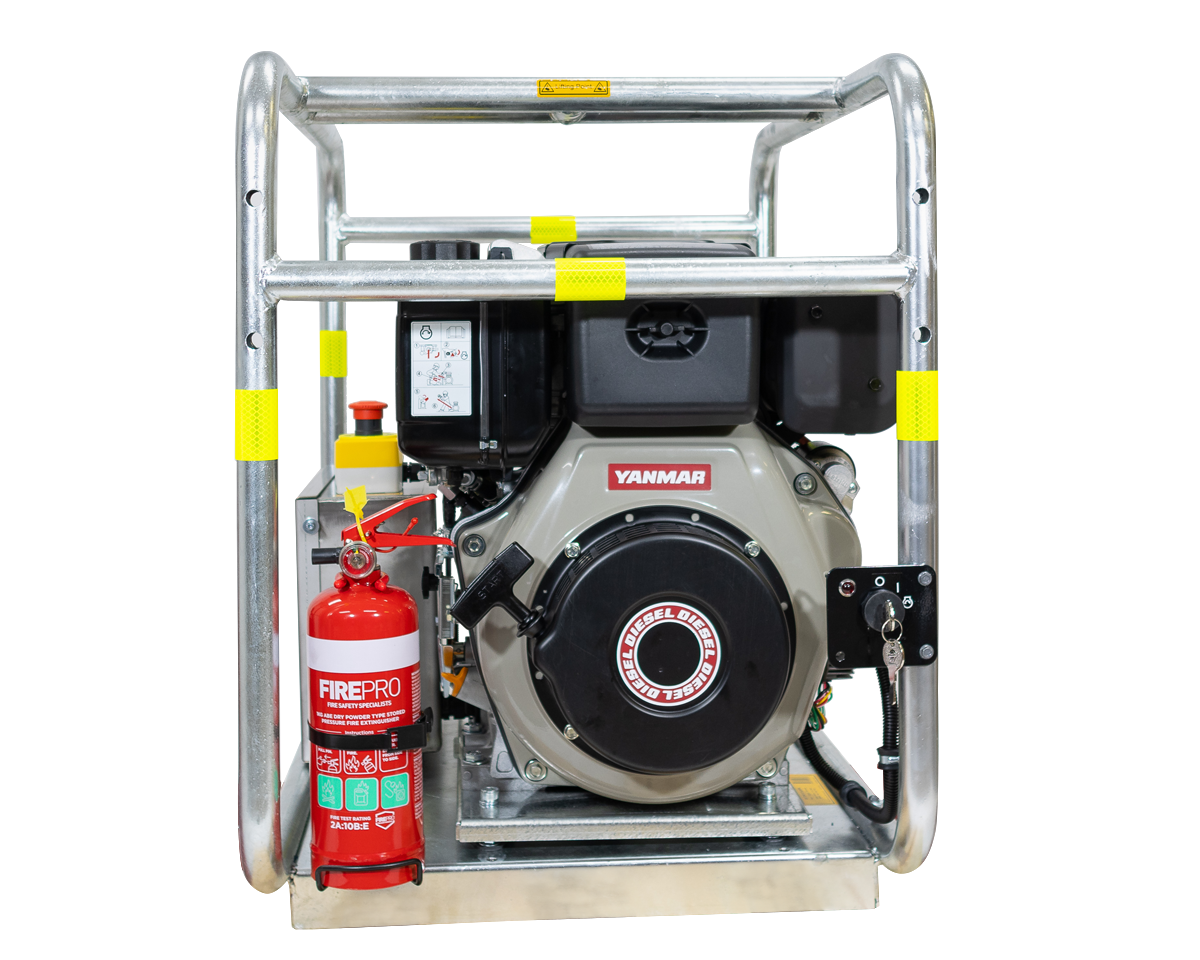

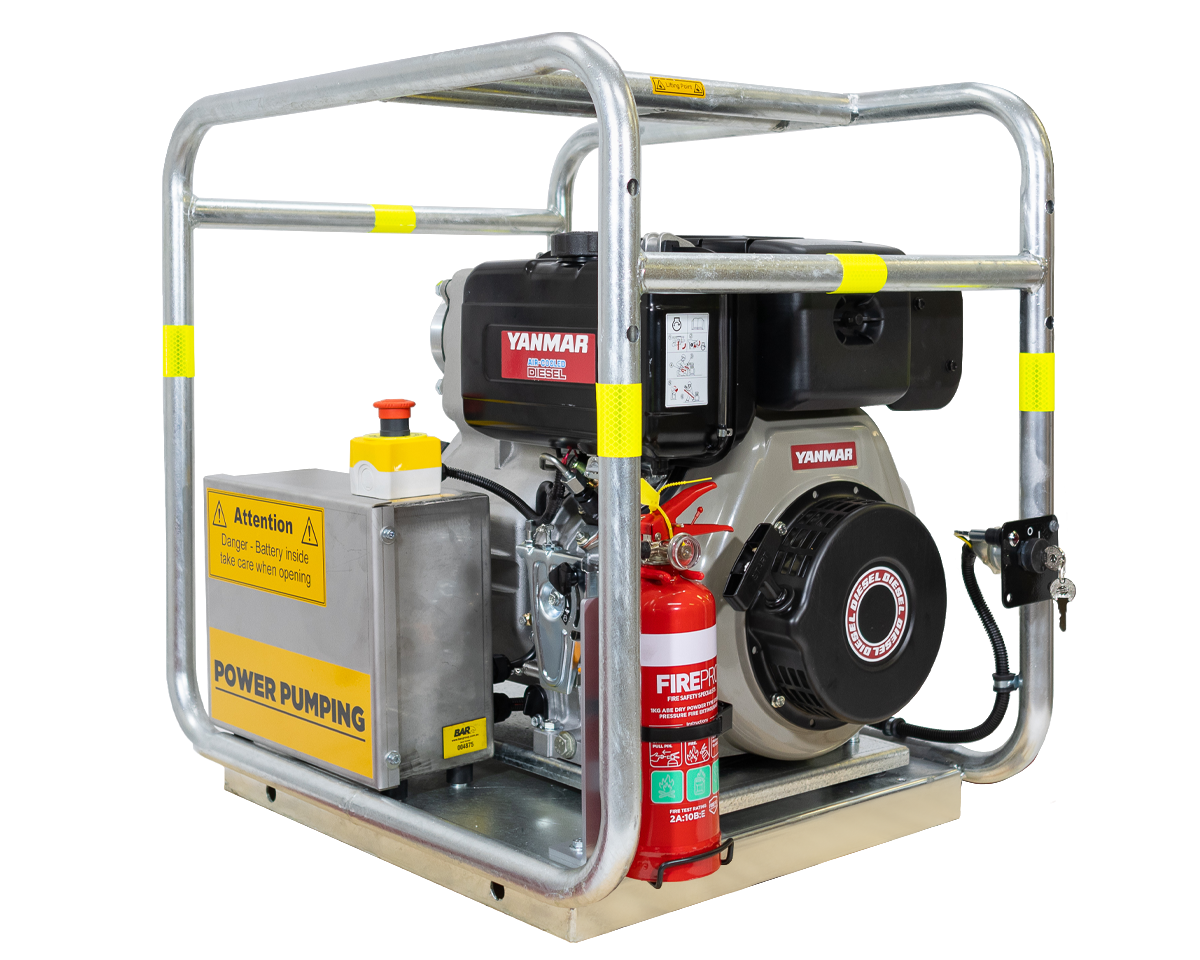

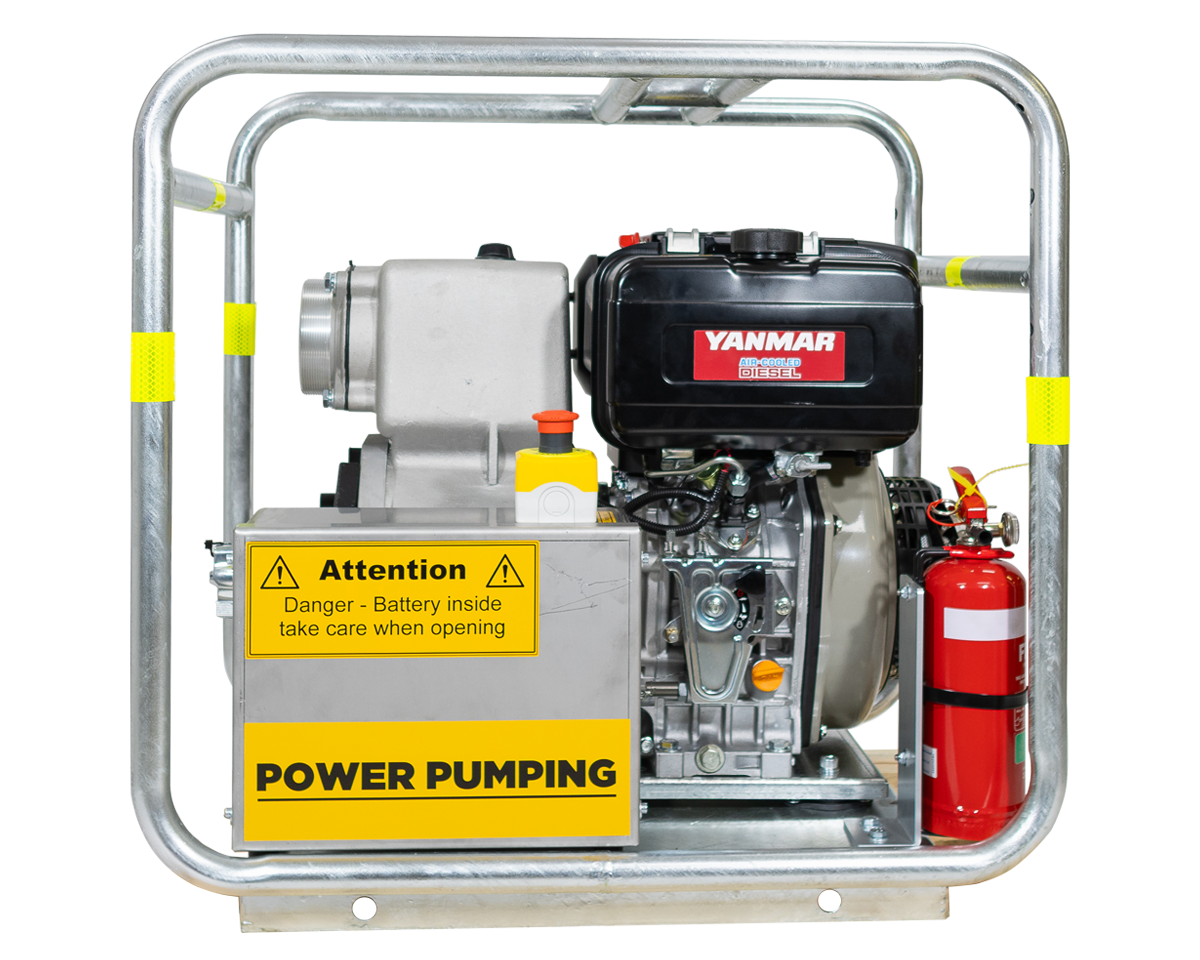

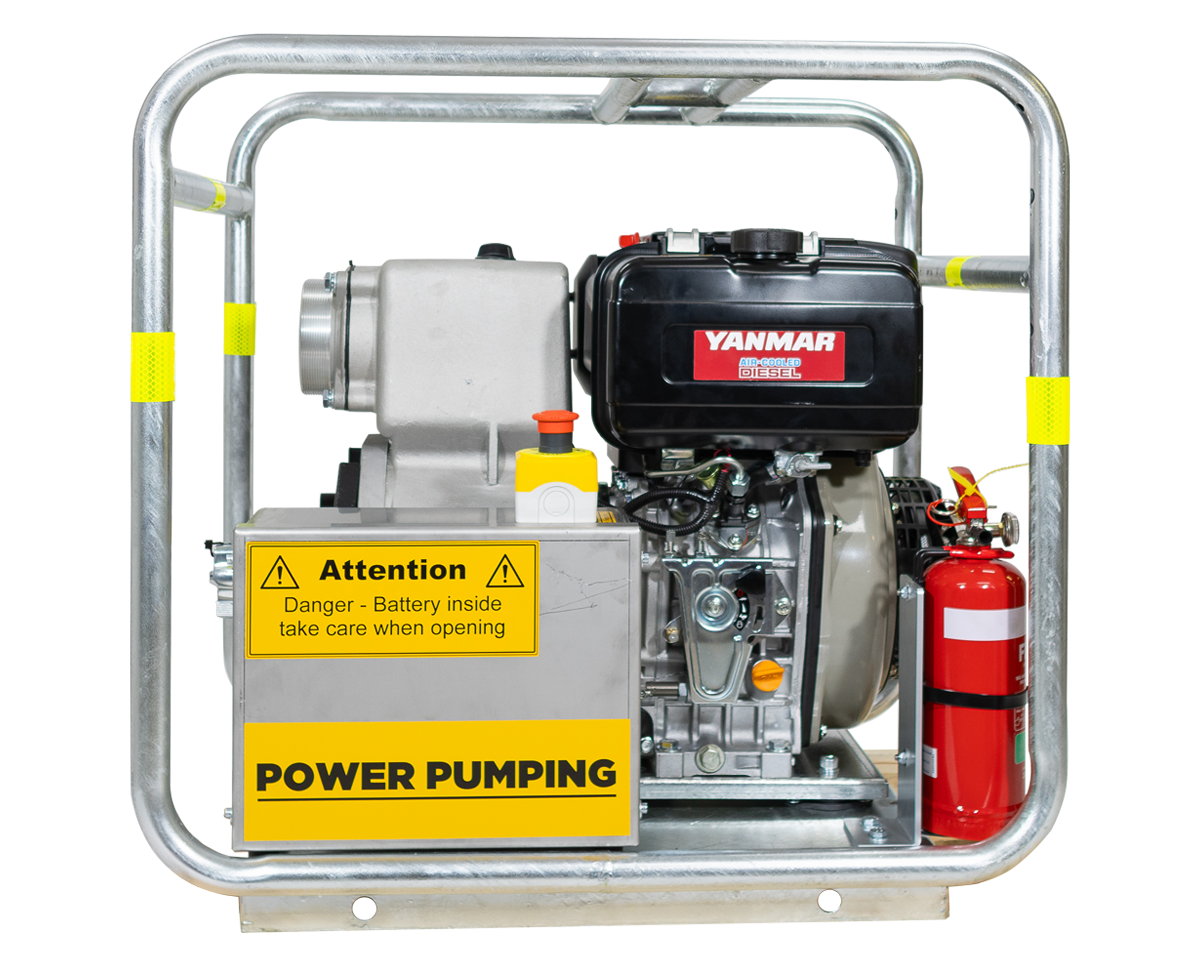

Mine Spec Version

• Integrated Fire Extinguisher
• Emergency stop
• Lockable battery isolation
• Gel battery in enclosed box
• Galvanized frame
• Yanmar electric start diesel engine

Specifications

• Engine: Yanmar L100 10 hp Electric
• Max Flow Rate: 2,200 L/min
• Max Head: 29 m
• Suction Capacity: 7 m
• Inlet/Outlet: 4”
• Unit & Frame: Robust galvanised frame with anti-vibration mounts
