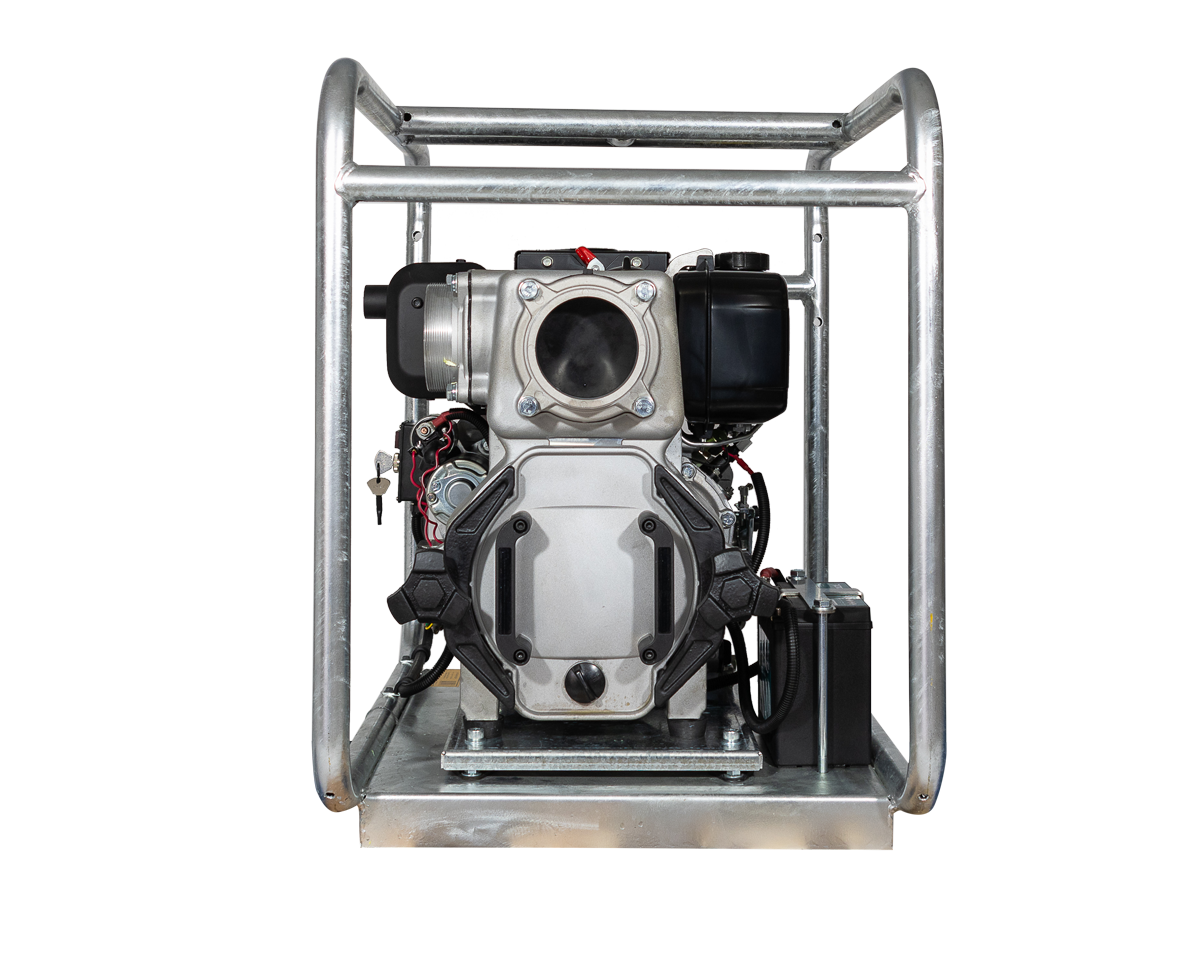

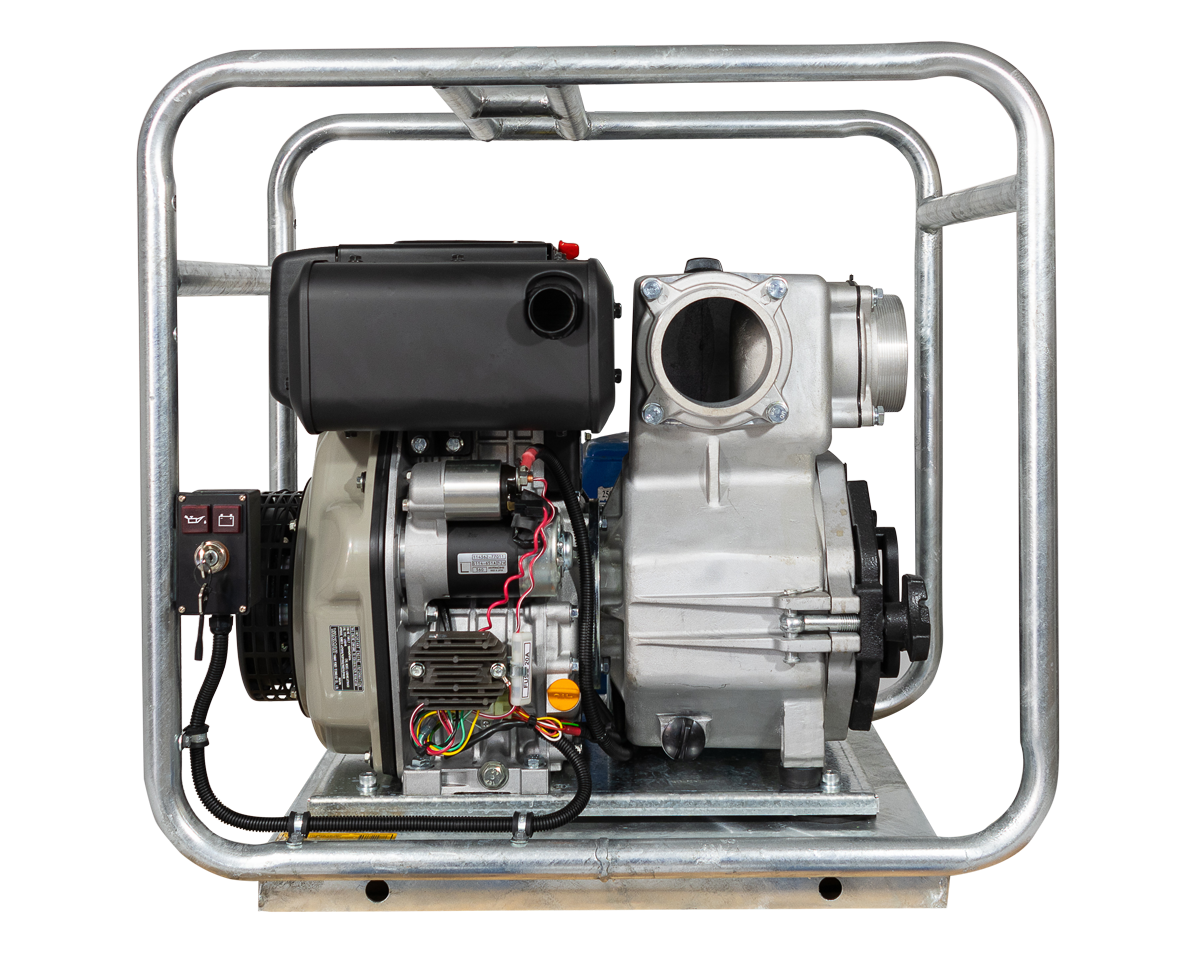

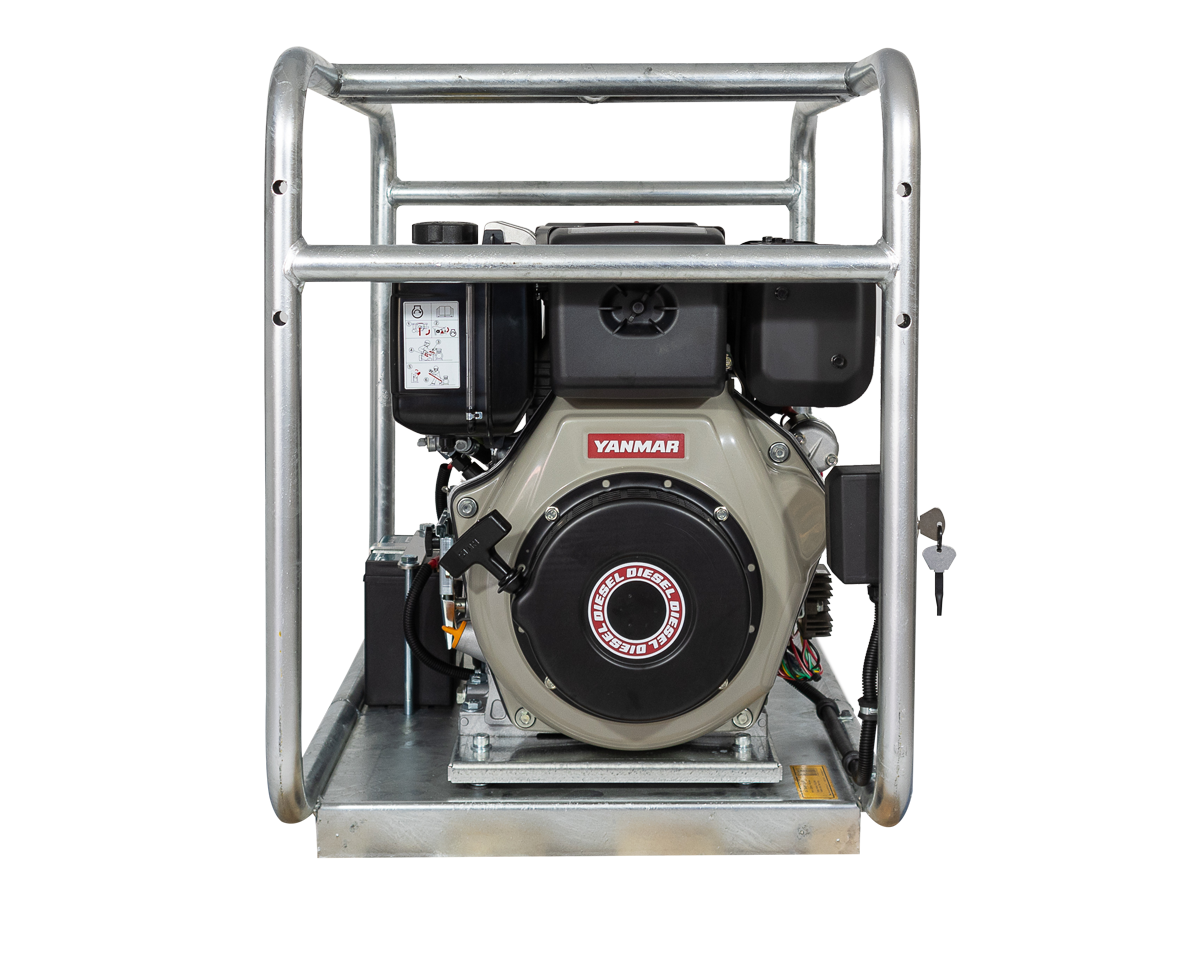

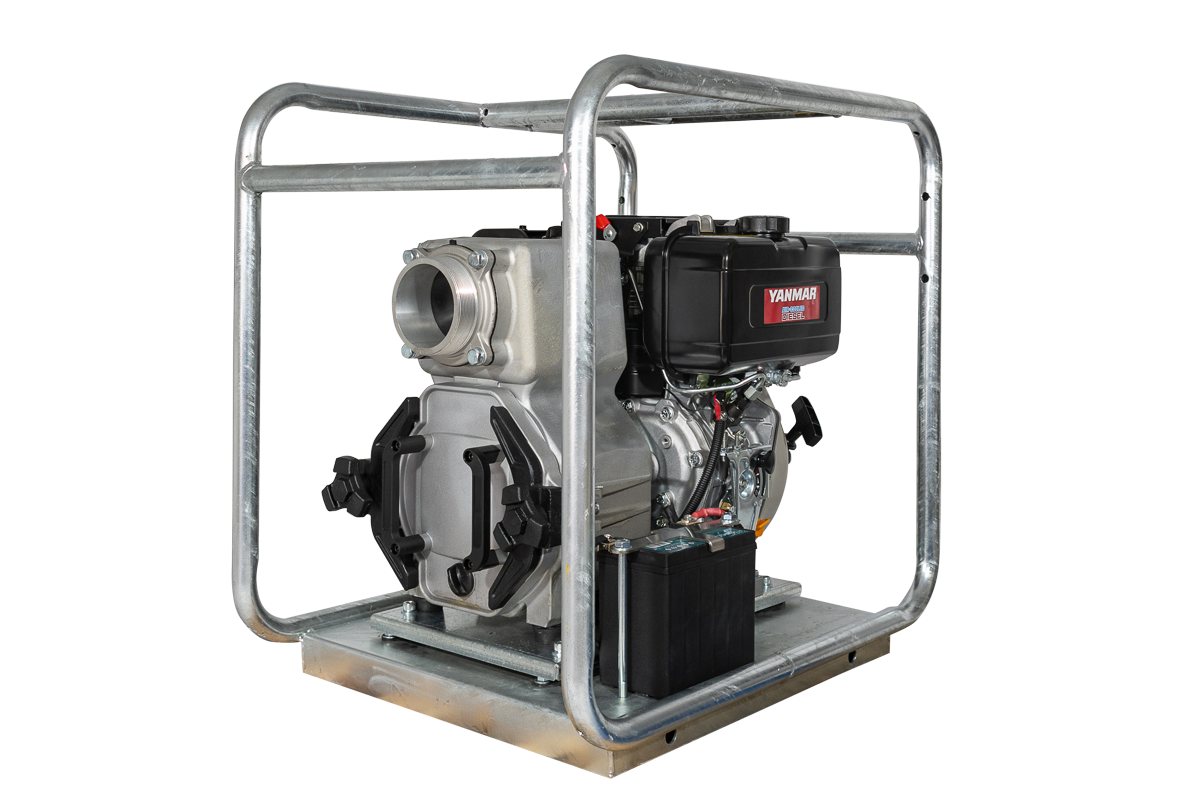

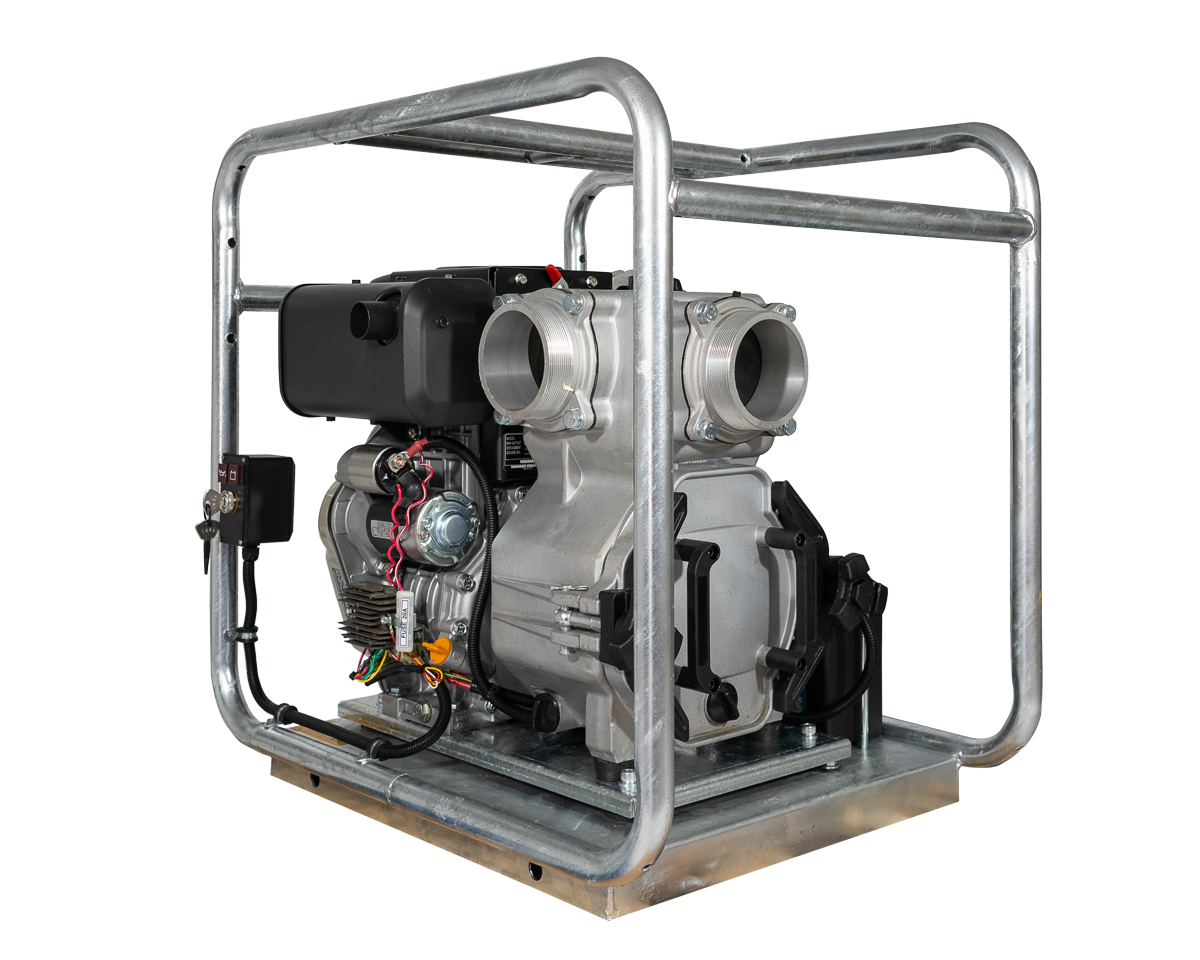

TD4010 Trash Pump
The ideal choice for moving water that contains solids and debris. Built in Australia, our Trash Pumps feature a heavy duty cast aluminium pump body with a cast iron open style impeller. A removable inspection door allows the operator to purge debris from in and around the impeller and volute without pipe work disconnection. Maximum solids capability is 25 mm. A great choice for tasks such as moving flood water, dewatering construction sites, wastewater handling, effluent pump out and mine waste pump out.
- Upgraded silicon carbide mechanical seal best suited for handling dirty water
- High-grade ductile cast iron impeller & volute
- User-friendly removable inspection door
- Big open non clog style impeller
- Front-mounted clean-out port
- Strong cast aluminium cast iron pump body
- Unit mounted in rugged galvanised roll frame with 12v battery included.
- Camlocks for inlet and outlet included
- Engine Power options include Yanmar L100 , 10 hp electric start single cylinder diesel engine or ITC Power D500E 10 hp electric start single cylinder diesel engine both with oil alert and low oil protection.
Applications
- Flood Water Management
- Construction site dewatering
- Waste water handling
- Effluent pump out
- Livestock waste water handling
- Solid laden min waste pump
Pump Materials
- Pump Body: Cast Aluminium
- Impeller: High grade SG ductile cast iron, non clog open vein style impeller
- Volute: High grade SG ductile cast iron
- Mechanical Seal: Silicon carbide
- Casing Bolts: Zinc Plated Steel
- Check Valve: Nitrile Rubber
- Priming & Drain Plug: Polycarbonate
- Priming & Drain Plug O rings: Nitrile Rubber (NBR)
Long Range Fuel Tank
- 25 L stainless steel long range fuel tank providing up to 10 hrs of operation under full load
Specifications
- Engine: Yanmar L100 or ITC Power D500E
- Max Flow Rate: 2,100 L/min
- Max Head: 29 m
- Suction Capacity: 7 m
- Inlet/Outlet: 4” Male BSP
- Unit & Frame: Robust frame with anti-vibration mounts
