Features

High rpm, high pressure, self-rotating applications, surface cleaners, parts washers

• Complete stainless steel construction
• Seal failure warning, through weep holes
• Sealed stainless steel bearings
• Carbide seal system

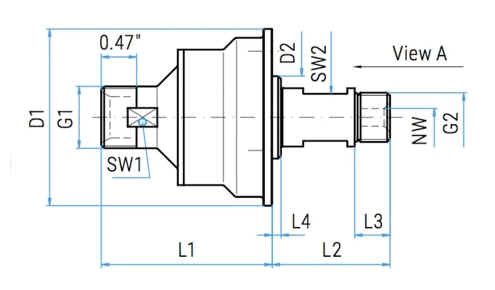

G1 M22x1.5M, G2 G3/8”M, NW 1/4”, SW1 0.79, SW2 0.63, L1 2.28, L2 1.46, L3 0.47, L4 012, D1 2.36, D2 1.10, Weight 23.0 oz

Specifications

• Pressure: DYCI: 5000 Psi (35 MPa), DYDI: 7300 Psi (50 MPa)
• Temperature: 250°F
• Max Rpm: 2,000 Rpm
• Body: Stainless steel
• Inner part: Stainless steel
• Seal: carbide
• Bearing: 2x radial ball bearings, 1x thrust ball bearing
• Throughput: pH 3-12
• Medium: filtered 10 µm, compressed air (290 Psi)
