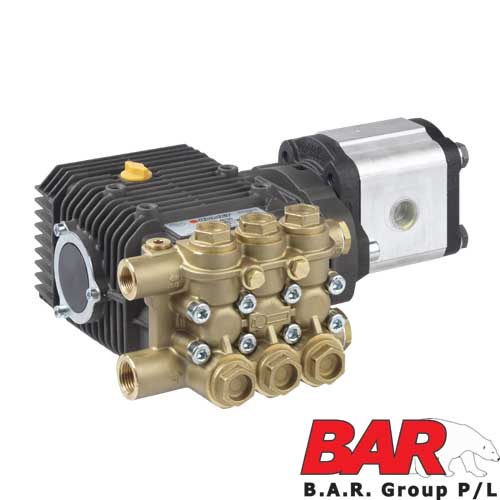

Hydraulic Drive 2,200 PSI

Italian Manufactured Motor Pump Units

Features

• GROUP 2 Hydraulic Engine (20 cc)
• Brass Pump Head
• Reversible Crankcase for Right or left Hand Mounting
• Hardened Stainless Steel piston Guides Highly Efficient Stainless Steel Check Valves
• Solid Ceramic Plungers
• High & Low Pressure Seals: High Quality Buna-Textile Packings
• Additional Anti-Extrusion Ring under the Seal
• Solid Brass Manifolds
• Special Forged Brass Oversized Connecting Rods
• Die-Cast, Anodized Aluminum Crankcase
• Highly Quality Tapered Roller Bearings
• Optimal Oil Bath for High Speed Operation

Specifications

• 2,200 PSI
• 15.1 L/min
• 1,450 RPM
• 5 kW
• 15.4 kg
• Hydraulic Motor
  • 20 cc
  • 29.6 L/min
  • 1,704 PSI

Use on equipment such as:

• Garbage trucks
• Cement mixers
• Skip loaders
• Tractors
