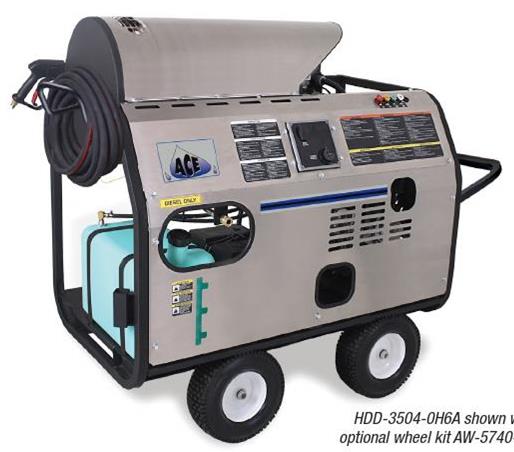

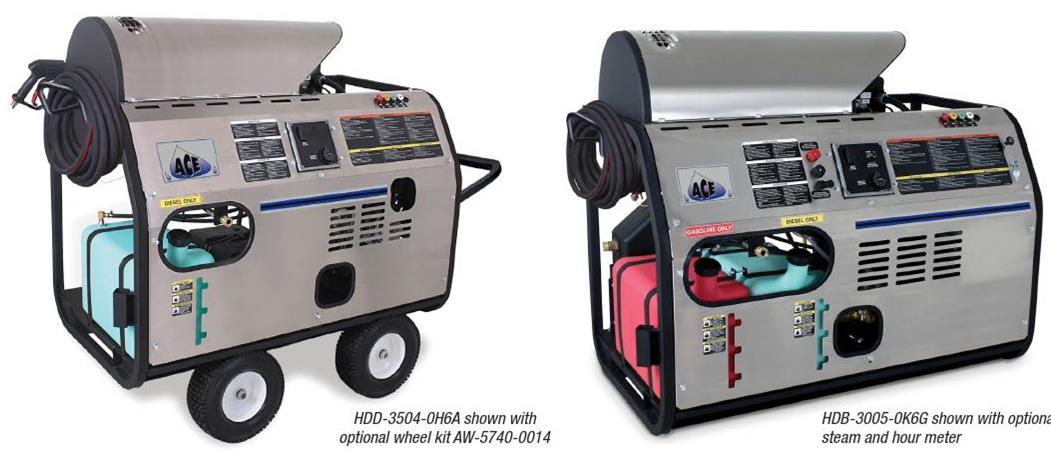

Hot Pressure Cleaner

The HDB Series is a small, compact mini skid that installs easily in tight spaces.

Features

• Pump: Belt drive triplex piston General pump · Low pressure detergent injector
• Engine: Performance-proven gasoline engine with electric start – battery not included
• Frame: Powder-coated steel square tube skid frame · Stainless-steel removable front panel · Optional wheel kit with locking tire brake, four tires and solid steel threaded axles
• Components: Stainless steel coil wrap heat exchanger with horizontal schedule 80 pipe coil · 12 V Beckett burner – no need for a generator – battery not included · No. 1 or No. 2 fuel oil, diesel or kerosene fired burner (Not approved for bio-fuel)
• Miscellaneous: Adjustable thermostat · Temperature rise 150°F/66°C above ambient, maximum outlet temperature is 200°F
• Unit Includes: Quick connect nozzles 0°, 15°, 25° and 40° · 50-foot x 3/8-inch high pressure hose · Adjustable pressure insulated dual lance · Insulated trigger gun with safety lock-off

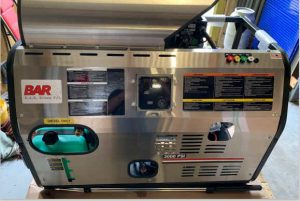

BAR’s Petrol Engine Driven Hot Water Unit

Performance:

• 3500 Psi @ 15 L/min
• 85°C Max Temperature
• Manufactured in USA

Engine:

• Honda GX390 13.0 Hp Engine
• Electric Start

Pump:

• Interpump PW3504 Plunger Pump
• Belt Drive 1400 Rpm Pump Speed
• External Unloader Valve
• Built in Italy

Frame:

• Stationary Frame
• Weight 566 Lbs

Accessories included:

• 10 M of hose, spray gun & lance with nozzle
• Supplied ready to go
