Features
- Move large volumes of water over short periods of time.
- These high quality units are the consumers’ choice for high flow water transfer, tank filling, dewatering and water tankers.
- Due to the improved pump life, the high-speed pump is not only suitable for all the use environments of ordinary pumps in the existing market, but also more practical in mountainous, hilly, terraced and orchard areas; It can replace high-value fire pumps of fire-fighting operation in low urban buildings, shrub forest; Pump impeller and spiral casing have good passability, and at the same time, design a ring of the tongue on the pump base surface to block particles, water grass, rags and other impurities from entering the mechanical seal chamber, and protect the mechanical seal and other vulnerable parts from injury, the pump has the relevant characteristics of the semi sewage pump and can be applied to urban areas, fish pond irrigation and other areas with poor water quality and so on.

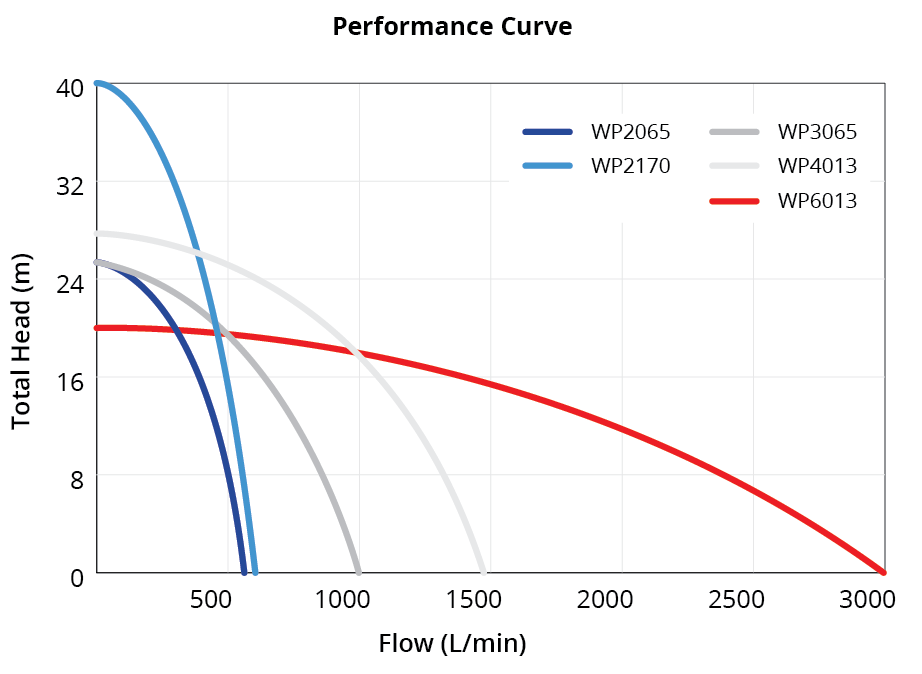

Performance
- Flow: 600 L/min
- Head: 40 m
- Suction: 7 m
Pump
- Type: Clean Water
- Inlet: 2″ BSP
- Outlet: 2″ BSP
- Impeller: Single
- Material – Body: Cast Aluminum
- Material – Impeller: Cast Iron
- Seal: NBR & Carbon/ceramic/nitrile mechanical seal. Optional Viton Seals Available (125 85.572.269V)
Unit & Frame
- Rugged Powder Coated Roll Frame
- Dimensions: 477 x 420 x 410 mm
- Weight: 25.5 Kg
Engine
- Powerease R210-V 7.0 hp Petrol Engine
- Air-cooled 4-stroke OHV
- Recoil Start
- 3.6 L Fuel Tank
- Low Oil Alert
- Powerease 2-Year Limited Warranty
- Engine type: Single cylinder, 4-stroke
- Displacement: 212 ml
- Bore x Stroke: 70x 55 mm
- Compression ratio: 9.0± 0.2
- Net power/speed: ≥4.9/4000(kw/r/min)
- Net torque/speed: 13/2500(N.m/r/min)
- Fuel consumption: ≤395(g/kw.h)
