Features

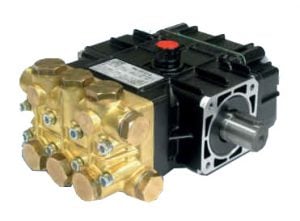

- Reciprocating plunger pumps are designed for a wide variety of high pressure washing applications.
- They are constructed of die-cast bodies and feature a forged reinforced brass head, aluminum die cast crankcase with cataphoresis coating, double sealing system, hardened steel crankshaft, oversize roller/ball bearings.
- Internal components include special thick solid ceramic plungers for long life and durability.
- Precision cast cooling fins are anodized for maximum heat dissipation.
- Oversized tapered roller bearings and precision supports ensure proper shaft alignment and maximum life.
- Valve cages of specially designed Ultra-Form provide positive seating and extended life.
- One-piece connecting rods are either a special alloy aluminium or bronze oversized for strength and load disbursement.
- These pumps are designed for gearbox, belt drive, or coupling drive systems, electric motor 182-184 frame driven systems, or gasoline engine driven systems.
- All models in this series are also available with aluminum die-casted head for pressure up to 90 bar (1300 PSI).
Applications
- Car-wash – High pressure water plunger pumps for car wash
- Construction
- Pressure washers
- Road sweepers & washers
- Misting – High pressure pumps for water spraying
Specifications
- Series: PN
- OEM Code: 959800
- Type: Male Shaft 24 mm
- Speed: 1,450 RPM
- Flow: 4 L/min
- Pressure: 1450 PSI
- Power: 1 HP – 0.7 kW
- Weight: 5.5 kg
