Features

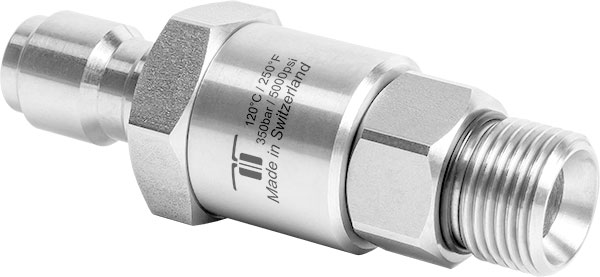

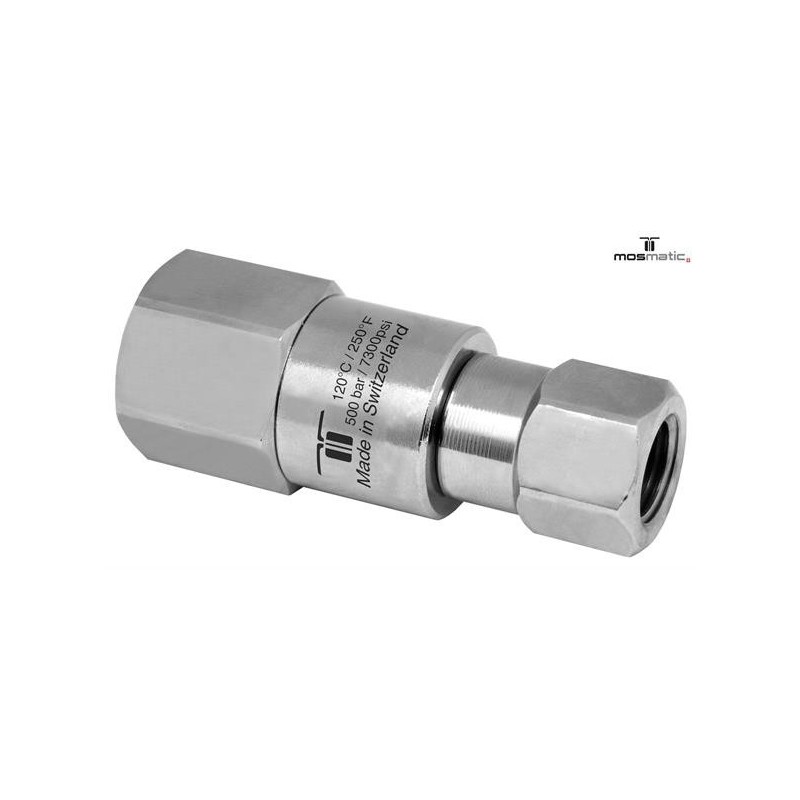

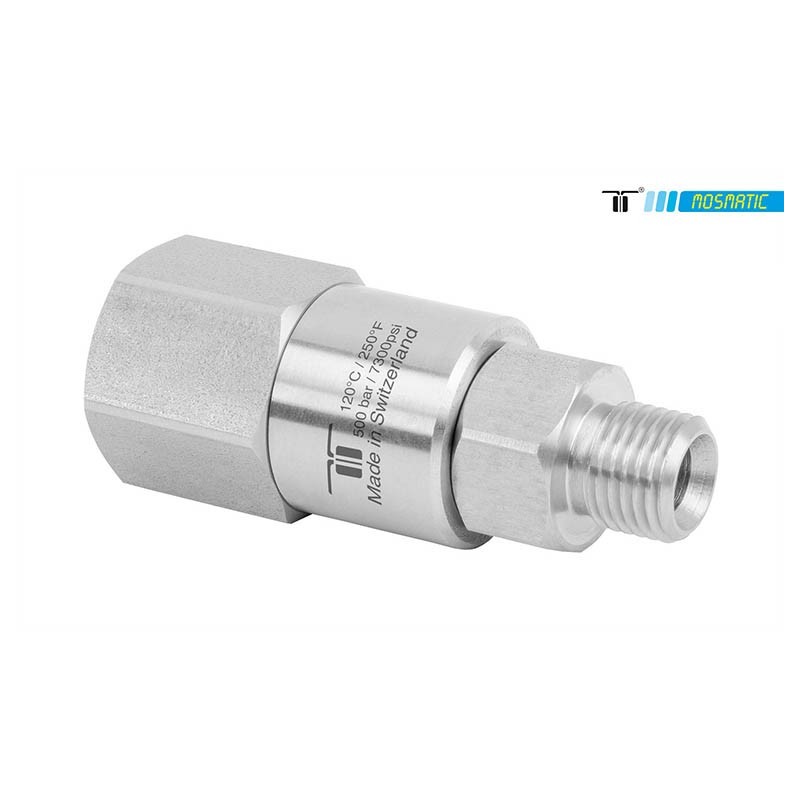

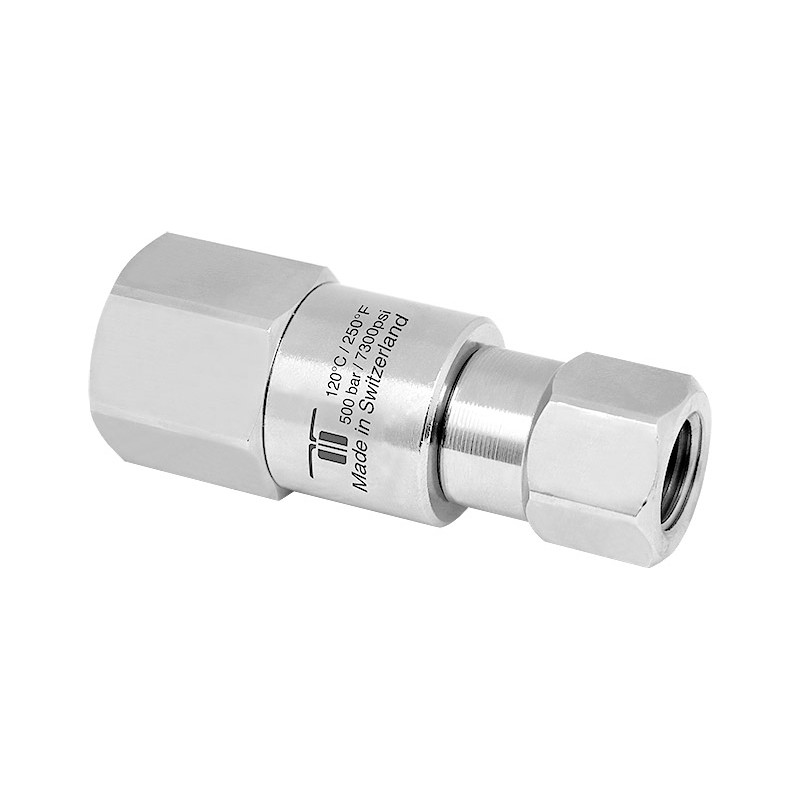

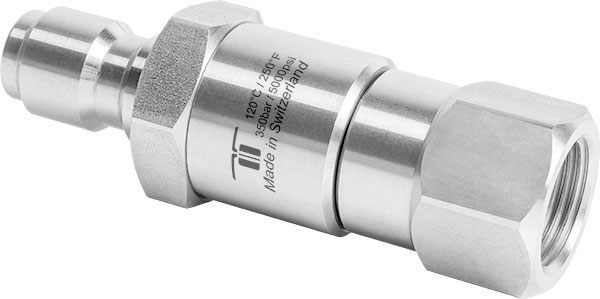

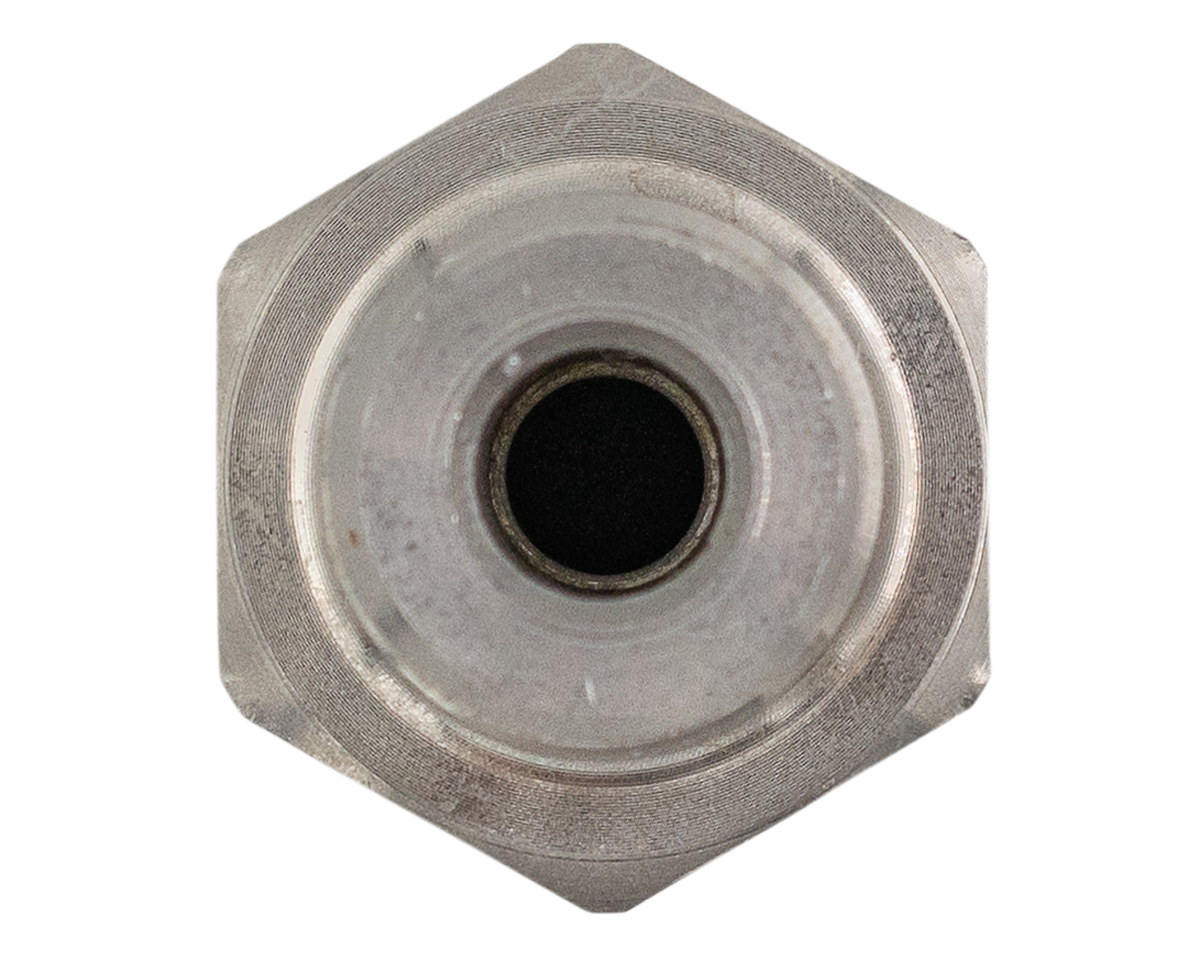

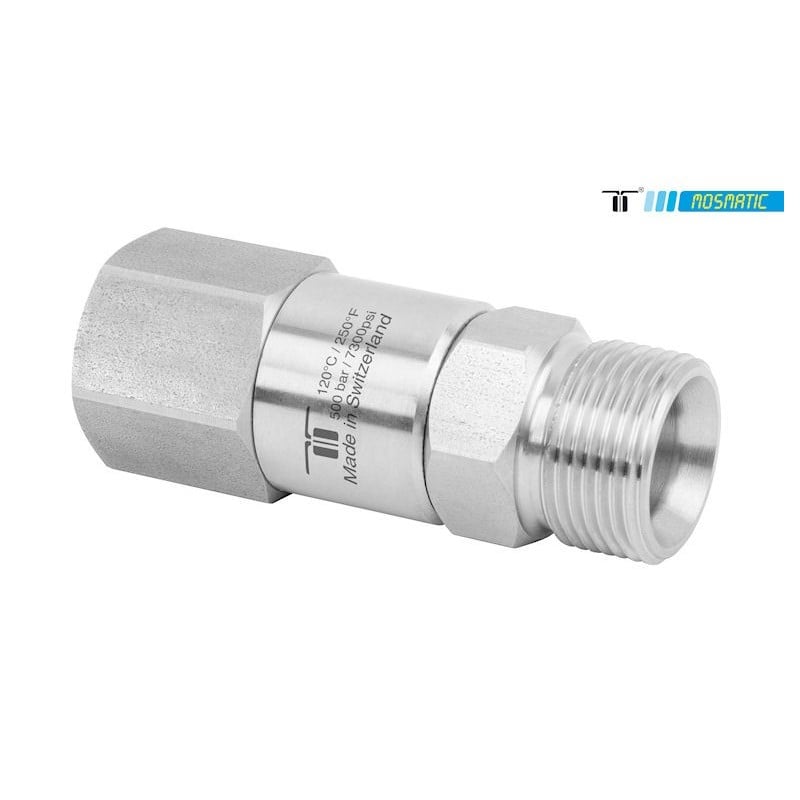

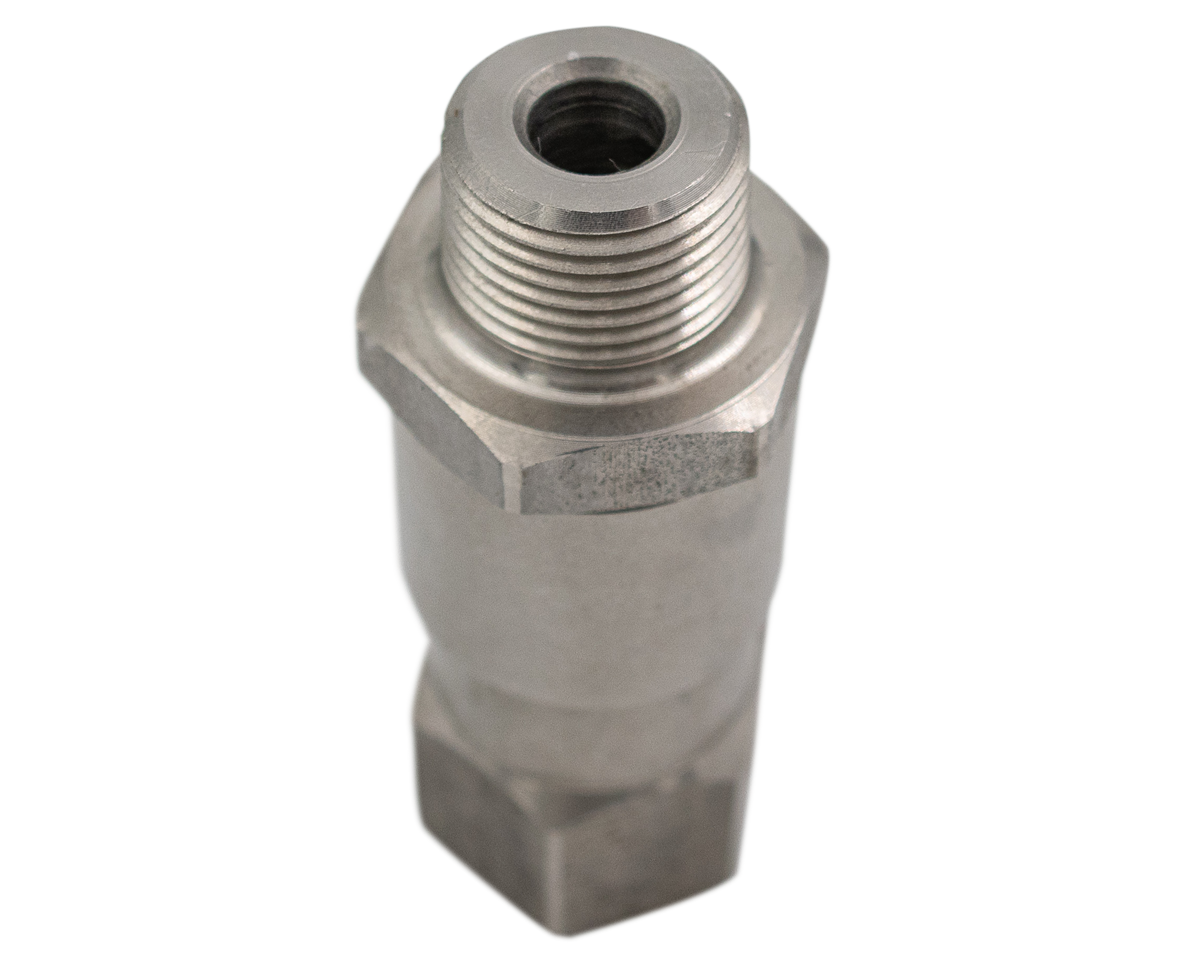

• DGVI swivel style
• Live rotation under maximum pressure
• Complete stainless steel construction
• Single bearing system
• Corrosion resistant
• Maintenance free
• Use for high pressure guns, high pressure hose reels, hydraulics, and tangle free applications
• Made and engineered in Switzerland

Specifications

• Inlet: Variable
• Outlet: Variable
• Working Flow: See table in images
• Maximum Pressure:
  • Standard Inlet: 7,250 PSI
  • 12 & 15 Diameter Inlet: 5,075 PSI
• Maximum Speed: 30 RPM
• Working Temperature: 120°C
• Material – Body: Stainless steel, brass, nickel plated
• Material – Inner: Stainless Steel
• Material – O-Ring: NBR (EPDM and FKM options)
• Bearing: 1 x thrust ball bearing
• Throughput Medium: 3 – 12 pH, 10 µm filtered, 290 PSI compressed air
