Features

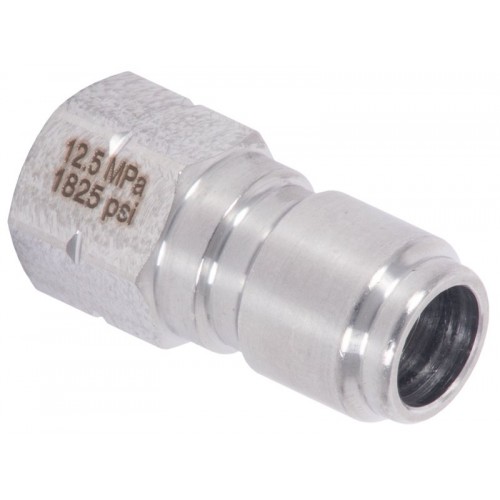

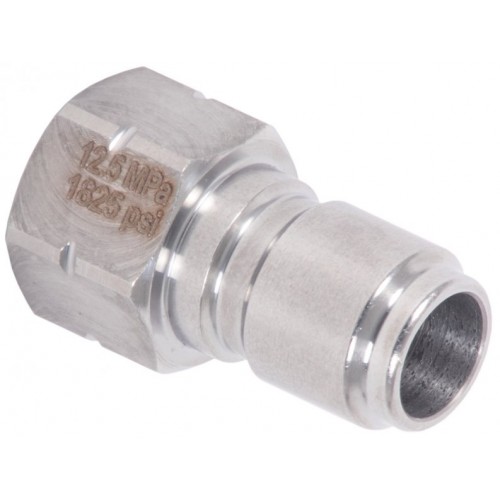

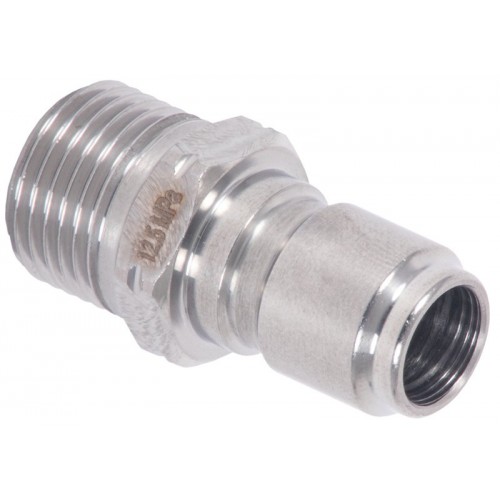

- Quick Connect Plug
- ARS 178 L Type
- Viton Seals
- Designed for the food industry
Specifications
- Inlet: Variable
- Outlet: Quick Connect Plug
- Working Flow: 50 L/min
- Working Pressure: 1,825 PSI
- Maximum Pressure: 2,025 PSI
- Working Temperature: 90°C
- Pin Diameter: 17.8 mm
- Internal Hole Diameter: 12 mm
- Material – Body: Stainless Steel
- Material – Pin: Austempered Stainless Steel
