Mobile Clutch for 24 mm solid sharp pump

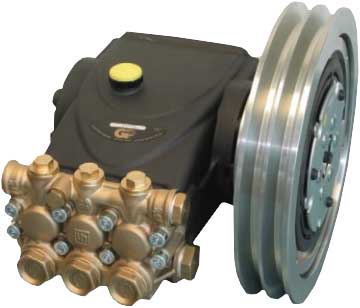

Typical Mobile Clutch – Water Pump Applications in typical water pump applications, the clutch is mounted on the input shaft of the water pump. Since the clutch has an integral pulley, a belt is used as the input to the clutch. This belt is normally driven directly from an electric motor or a gas/diesel engine. When there is no power to the clutch, the water pump does not not engage; however when power is activated, the clutch drives the water pump to initiate water flow. In this application, the GP clutch is mounted directly to a General Pump by using an adapter plate.
Used in Carpet Cleaning, Texture Spray Machines, High Pressure Pump applications.
Reasons for using an Electromagnetic Clutch
- Reduced horsepower consumption from the engine
- Extended pump life
- Less Cost
- Simple installation
- Operator convenience
- Cold weather starting
General Pump Mobile Clutch Design Advantages
- Solid forged rotor. A one-piece solid forged rotor means no chance of internal parts separation. They have an even wall thickness around the coil which gives optimum flux distribution, maximizing torque.
- Different coil voltages available.12 volt is the most common; 24 volt clutches are also available.
- High temperature, longer-life grease. Our special long-life grease has shown a significant improvement in life over other standard high temp greases.
- E-coating. Where possible, all parts in the clutch are e-coated to give maximum corrosion protection.
- High-temperature epoxy coil. To help prevent failure from vibration and outside contaminants, all coils are sealed in the coil shell with a high-temperature epoxy coating.
- Forged machined pulley. All GP models use a heavy-duty machined pulley. A stronger pulley resists damage due to abusive environments.
- Clutches are also available mounted on a General Pump. Please contact your sales representative.
Features
- Pulley Size & Type 7” – A Groove, 24 mm Shaft
- Width 2.25”
- Torque After Burnishing 75 – 95 lbs.
- Power Requirement: 12 V 47 W
- Weight 8 lbs.
- 47, 66 and 59 (ES) Series
- 12 V, Dual Groove
