Features

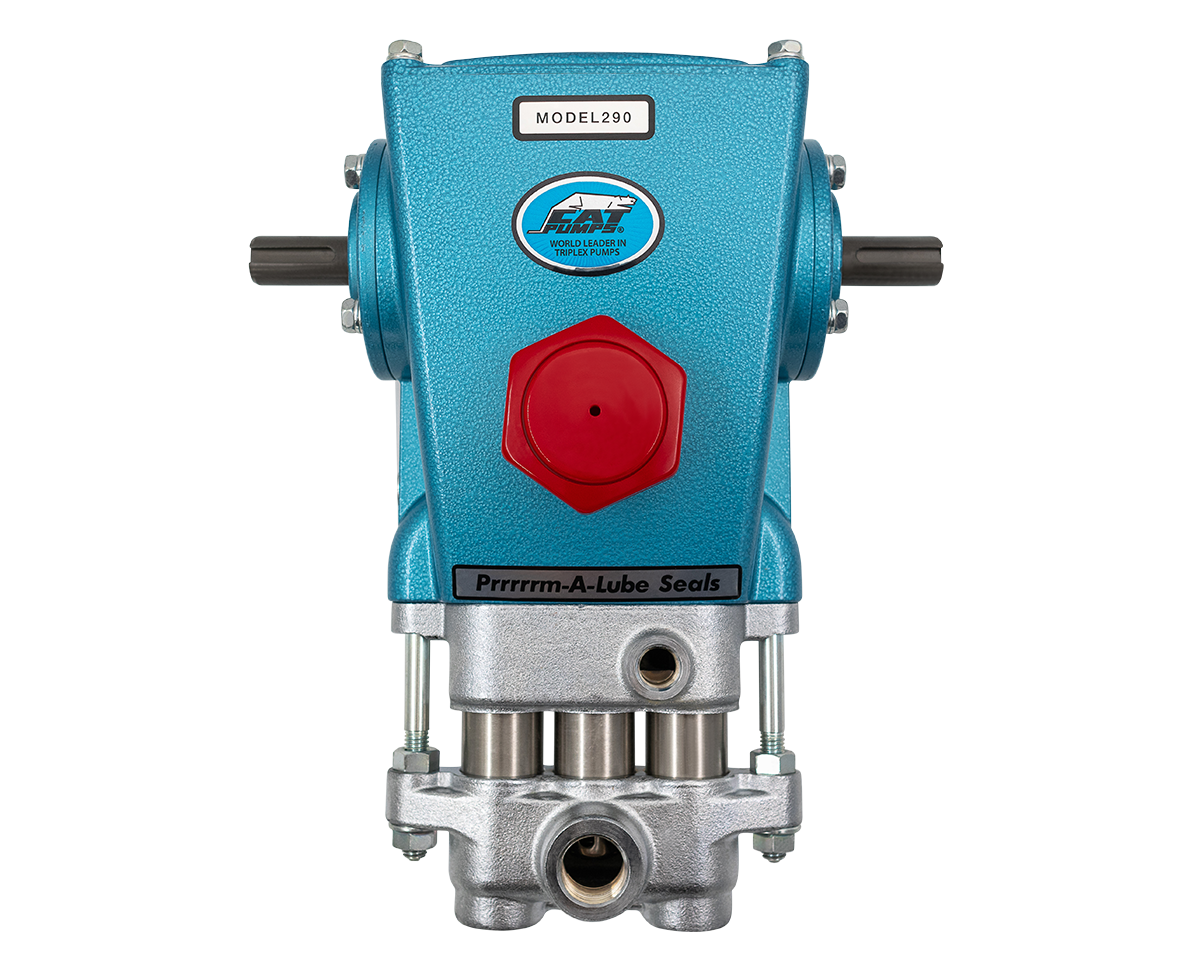

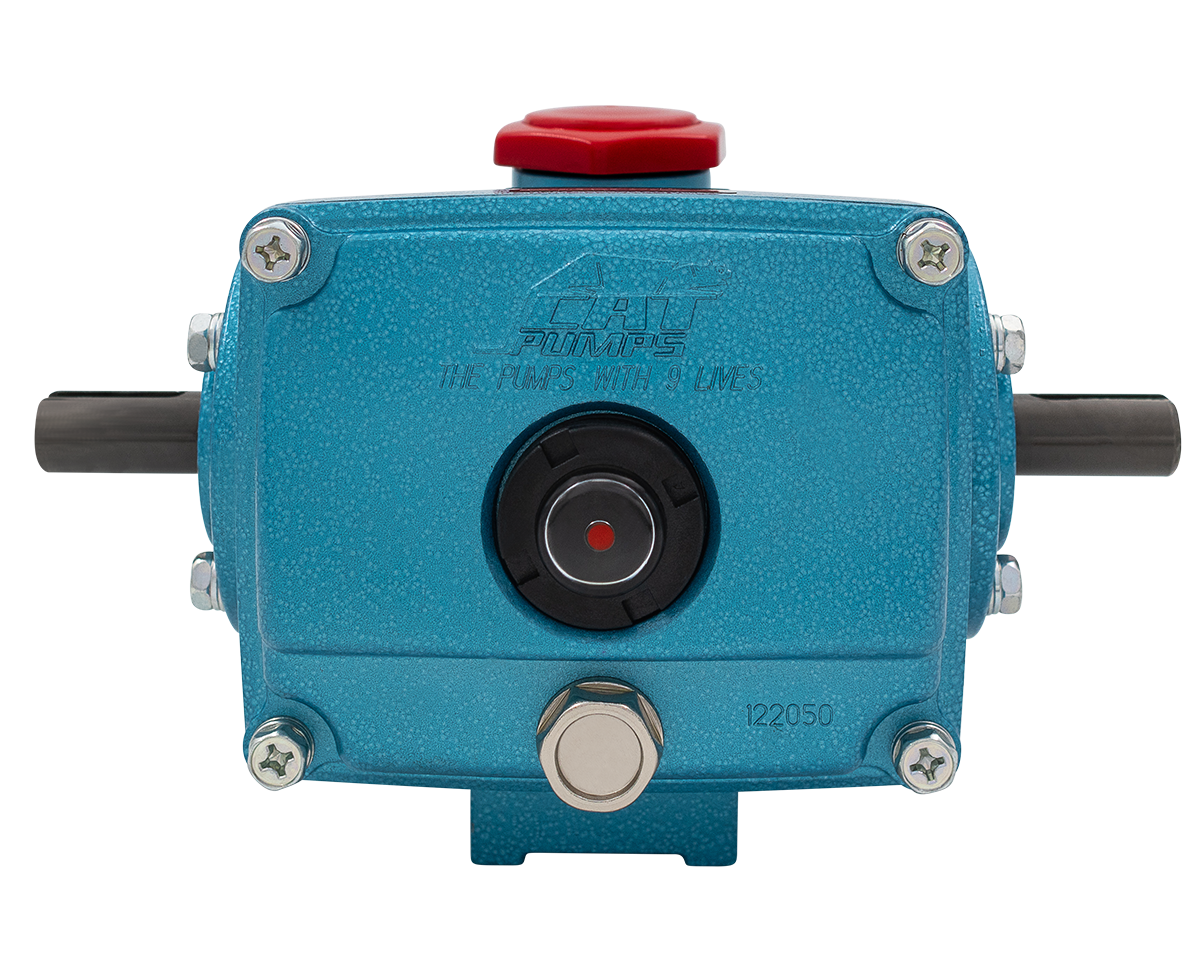

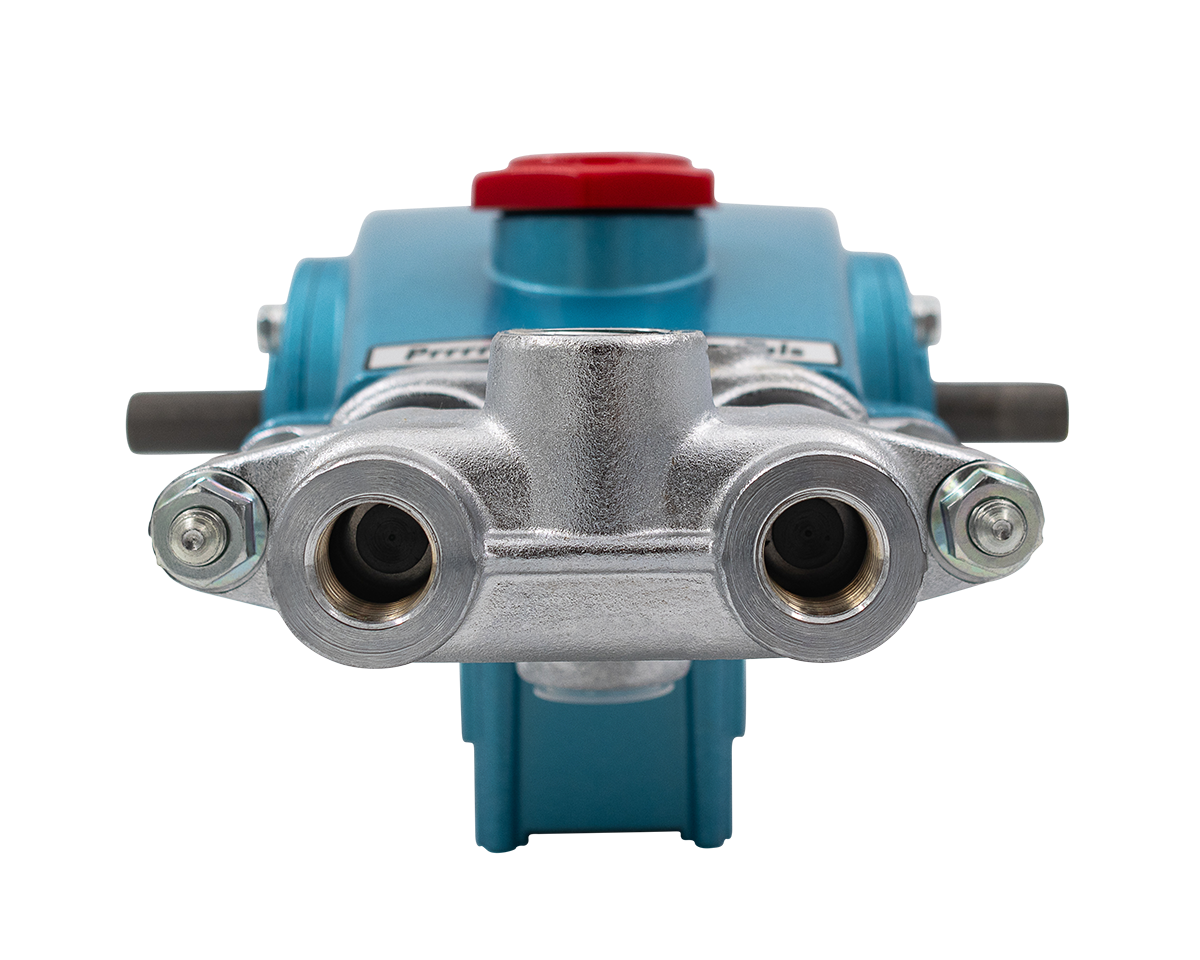

• This triplex (three piston rods) positive displacement, reciprocating piston pump is constructed with chrome-plated brass manifolds, 304 stainless steel valve assemblies, and chrome-plated 304 stainless steel sleeves and cylinders.
• Multiple piston cup and seal configurations are available with NBR (Buna-N) O-rings.
• The lower RPM belt drive design provides strong inlet suction and long-lasting pump and seal life.

Specifications

• Pressure – 1200psi
• Flow – 13.2 L/min
• Inlet – 1/2″ NPT F
• Outlet – 3/8″ NPT F
• Speed – 1200 RPM
• Drive – Belt, Clutch
• Material – Brass
