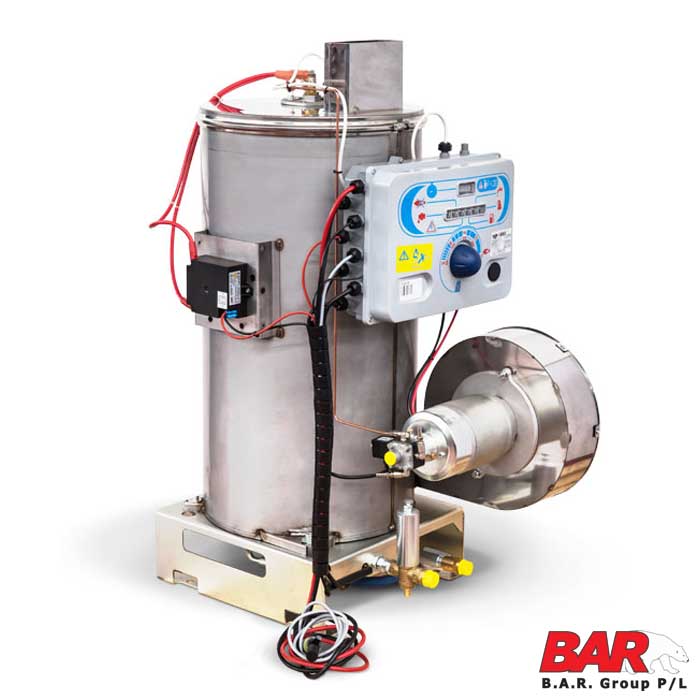

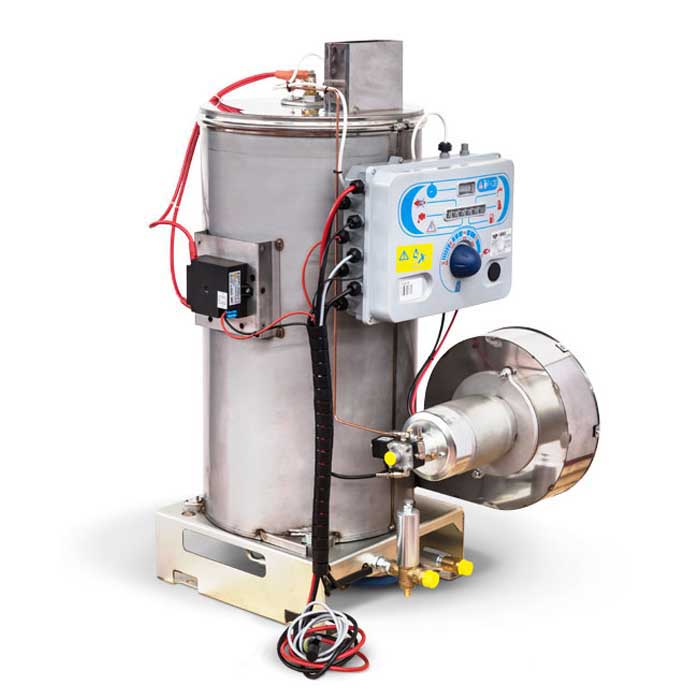

Boiler Assembly with Panel

Features

• Small Boiler Assembly with Electrical Panel
• Also known as: BOILER C3 240 V + Panel

Specifications:

• 24 V DC Electrovalve
• 400 V Motor
• 5075 Psi Max Pressure
• 30 L/min Max Flow Rate

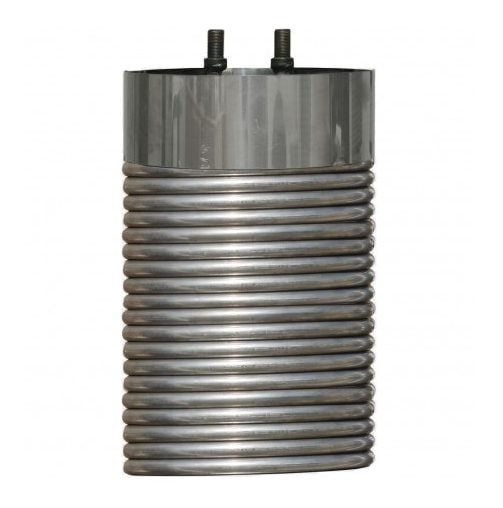

• 35 M Coil Length
• 3/8″ Coil Diameter
• 2.25 Nozzle

Consumption:

• 90000 Kcal/h
• 8.31 Kg/h

Additional Information:

DIESEL BOILER 15-20-25-30

• • Structure made of stainless steel
  • The bottom of boiler is made from compressed fired ceramic fiber

FLAME GROUP

• • • Diesel nozzle
    • Ignition electrodes
    • Copper diesel pipe
    • Support for flame control

DIESEL PUMP

• • • • Solenoid valve

TRANSFORMER

• • • • • 2 X 5000 V complete with cables connection (400 V)
        • 2 X 14000 V complete with cables connection (220 V)

MOTOR FAN

• • • • • • Aluminum
          • IP 44, 230 – 400 V, 50 – 60 Hz, 2800 – 3200 Rpm

Electrical box complete with:

• • • • • • • Frame control
            • Flow switch
            • Level switch
            • Thermostat
            • Pressure switch
            • Contactor
            • Hour counter display and LED lights alert
            • Safety valve (500 bar optional)
