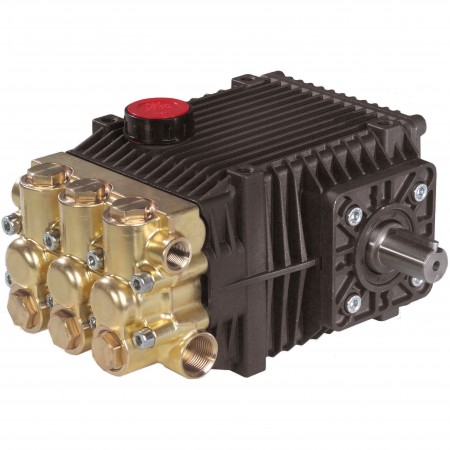

BERTOLINI PUMP TTL 1330

Features

• Intelligent packing seal system
• High-pressure seal self-lubricating with variable expansion dependent on pressure
• Anti extrusion ring made of PTFE & graphite protects pistons, precision engineered fit
• Low-pressure Seal reduces fiction on pistons
• Special Easylube gear oil is used for a break in periods of pump
• Stainless steel martensitic piston rod, hardened and polished – extremely wear-resistant
• Valve caps are designed to eliminate water under pressure in threads – torque reduced by 40%, therefore easy to remove without risk of damage
• Super Cool Fin System – die cast allows crankcase, ribbed for efficient cooling, with high thermal conductivity
• The hardened surface of piston guides ensures smooth operation

Specifications

• Max Flow: 13 L/min
• Max Pressure: 4,350 Psi
• Max Temperature: 74°C
• Speed: 1450 Rpm
• Engine: GX360 13 HP
• Shaft ⌀: 24mm
• Inlet: 3/4 BSP
• Outlet: 3/8 BSP
