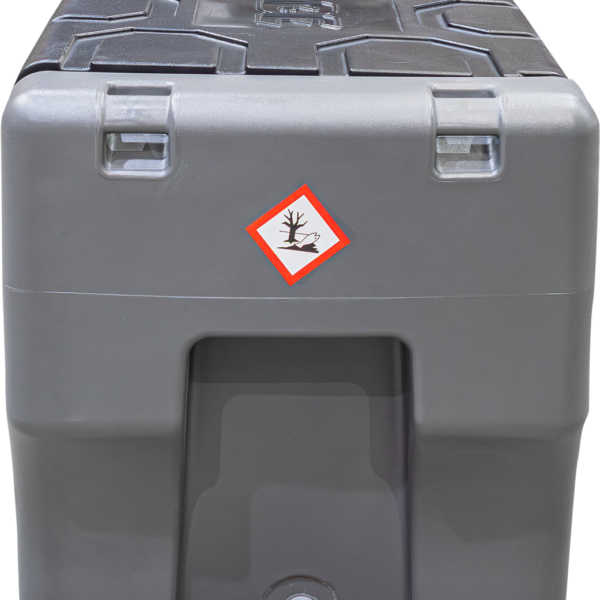

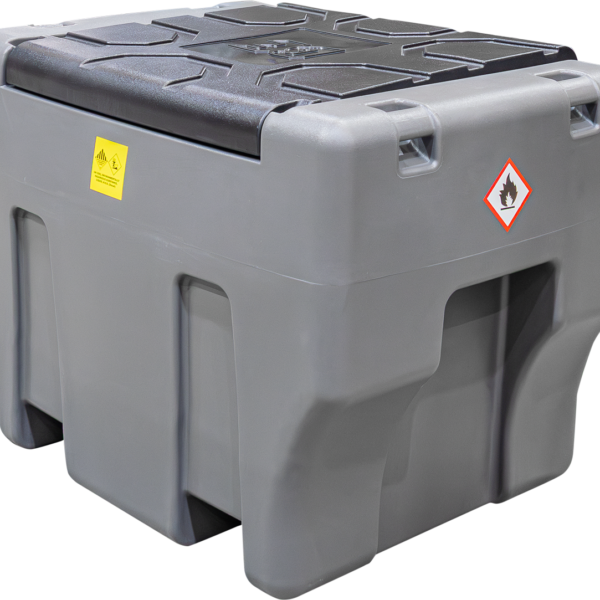

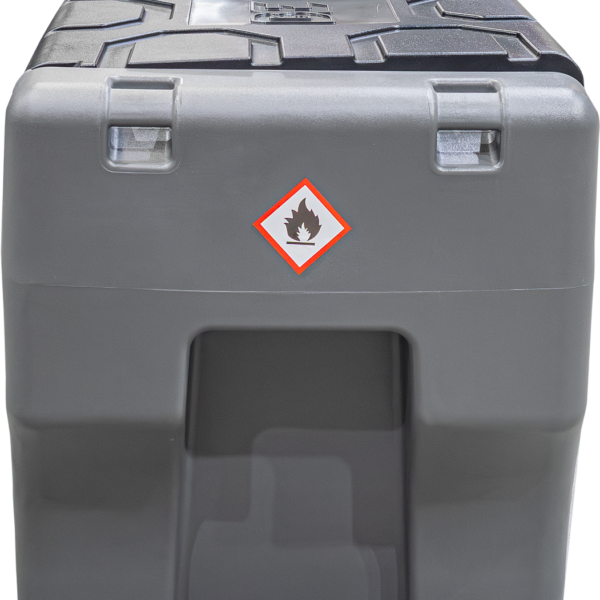

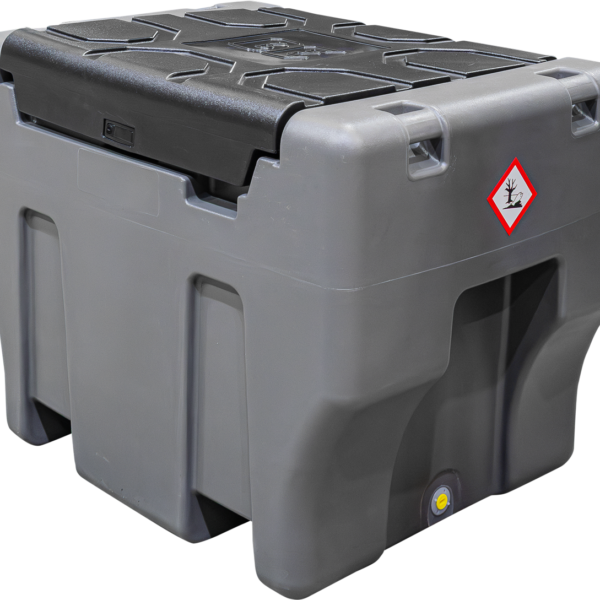

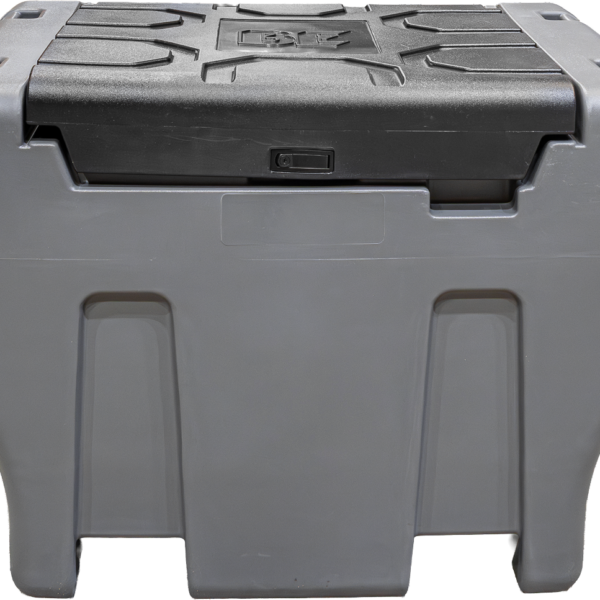

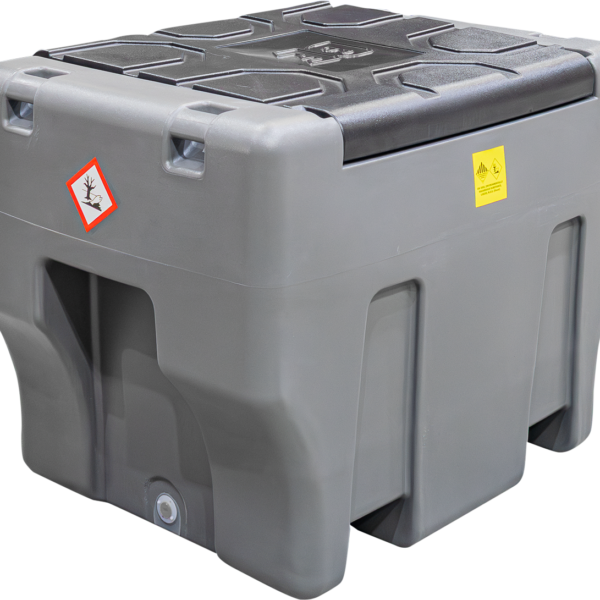

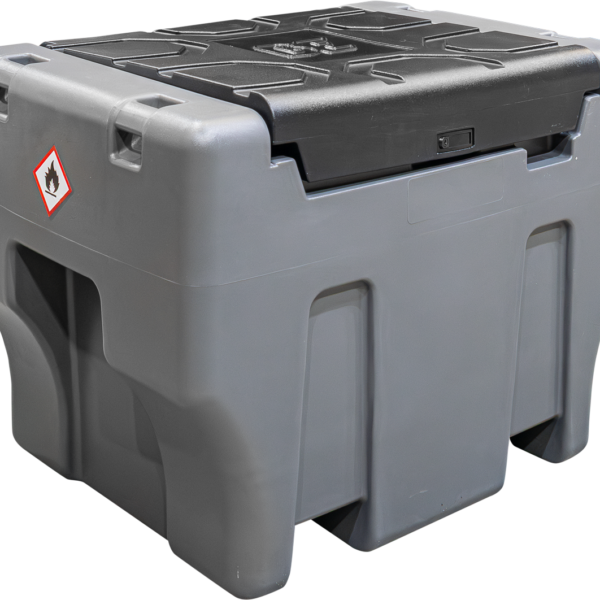

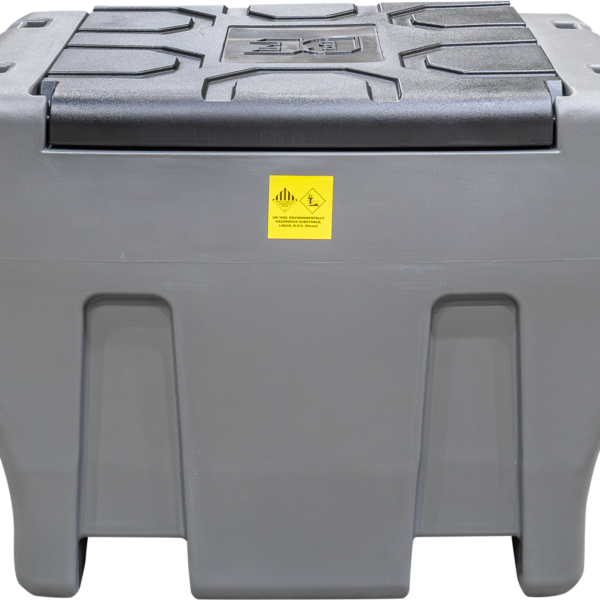

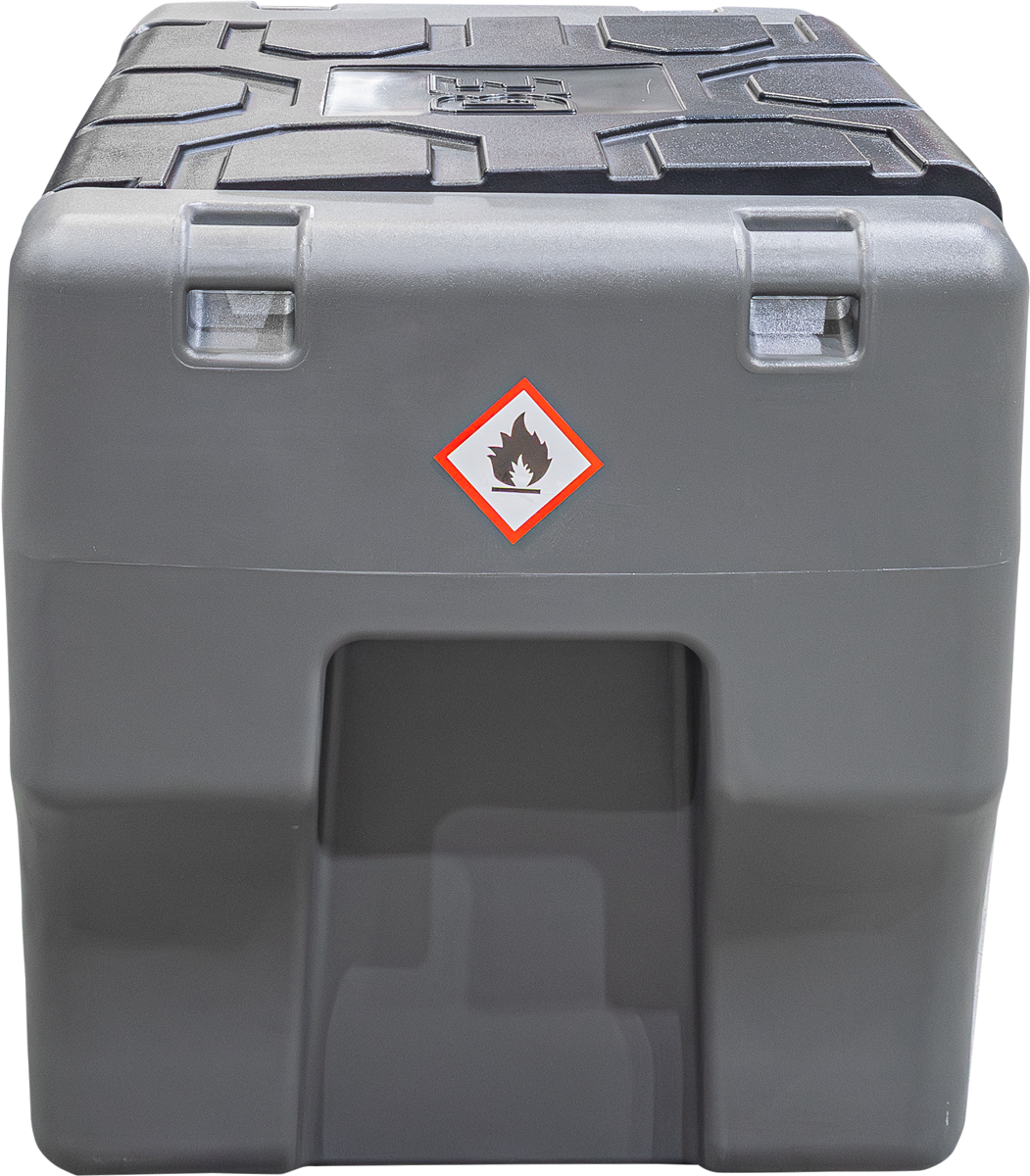

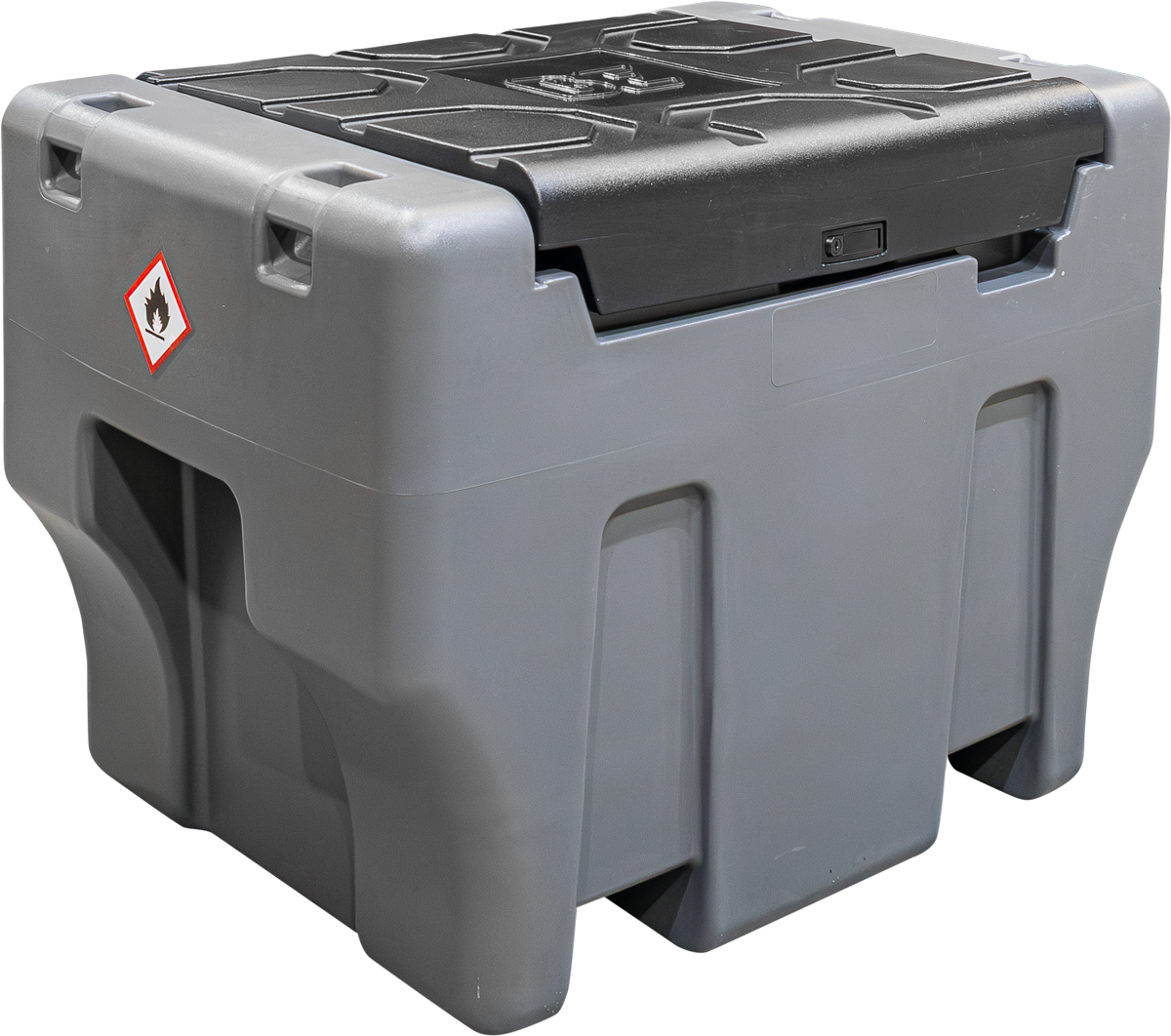

Combo CUBE Tank 400L (B1)
DD400+50 COMBO Tank for Diesel & AdBlue
Specifications
- Volume Diesel fuel compartment: 400 L
- Volume AdBlue® compartment: 50 L
- Dimensions – 50 L AdBlue Tank: 570 x 380 x 450 mm
- Dimensions (LxWxH): 1.150 x 820 x 860 mm
- Dimensions – Total: 1,160 x 820 x 860 mm
- Empty weight: 68 kg
- Empty weight including both transfer units 12 V: 62 kg
- Wall thickness: 6.5 mm
- Filling plug, size 2”, with integrated air vent valve on both compartments
- Level Gauge (only Diesel fuel compartment). In-line filter (both Diesel fuel and adblue)

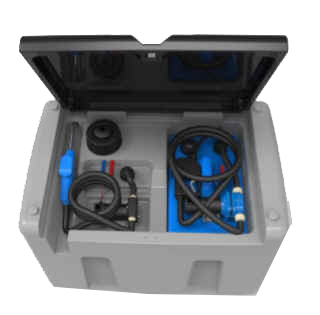

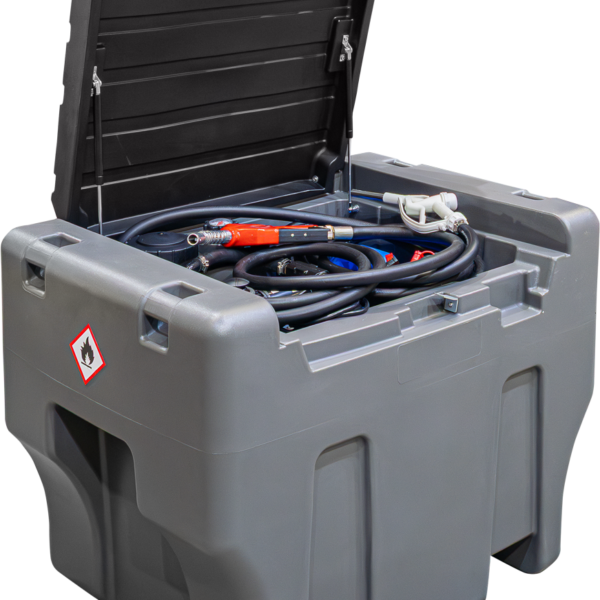

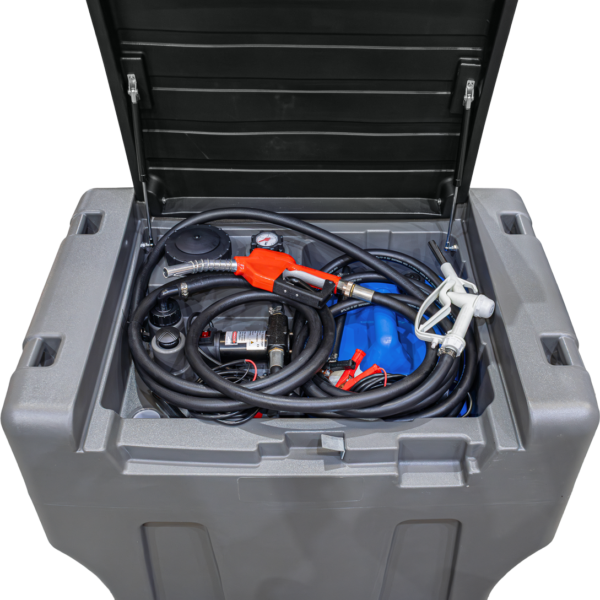

Standard model DD400PLUS40:

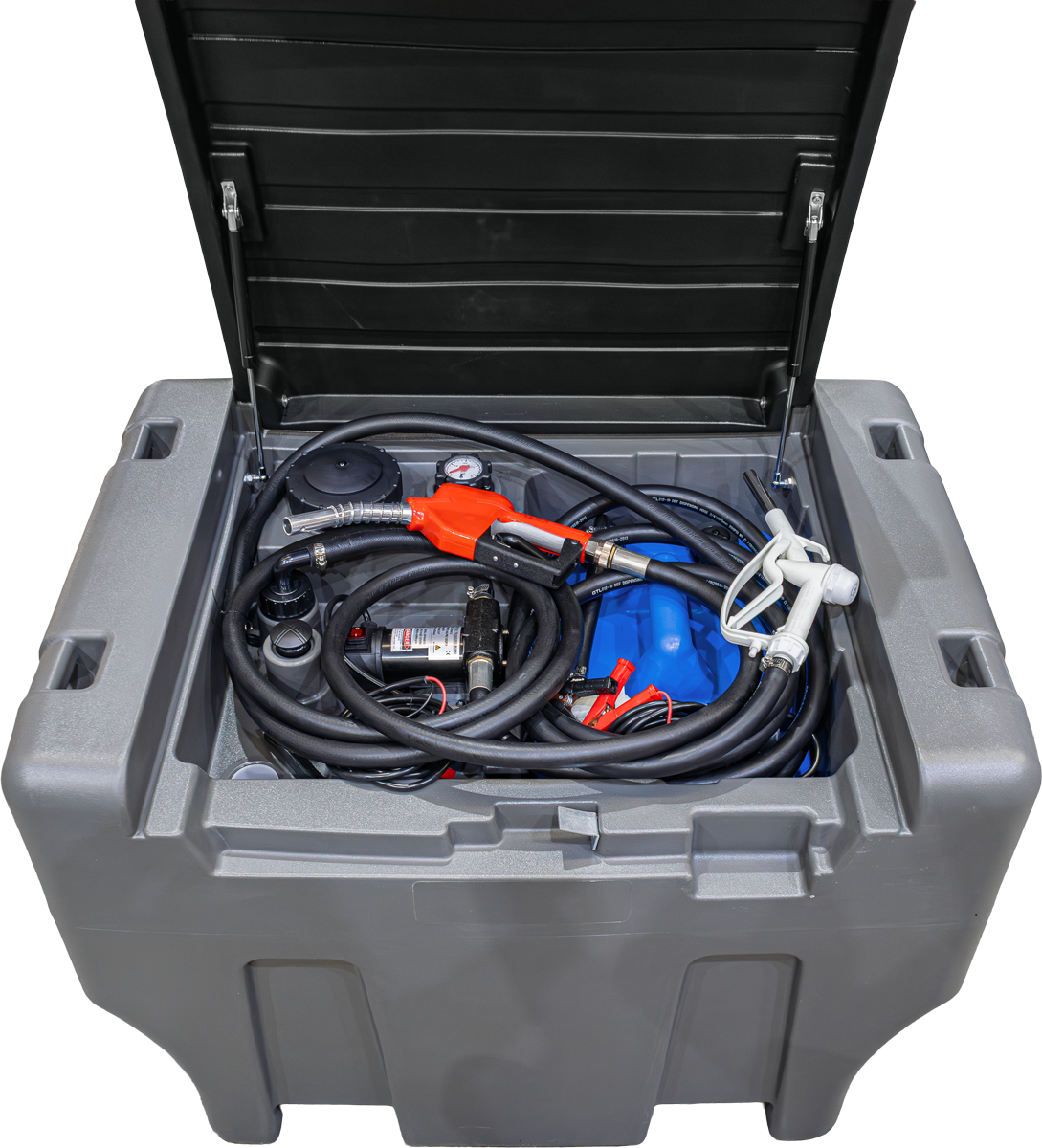

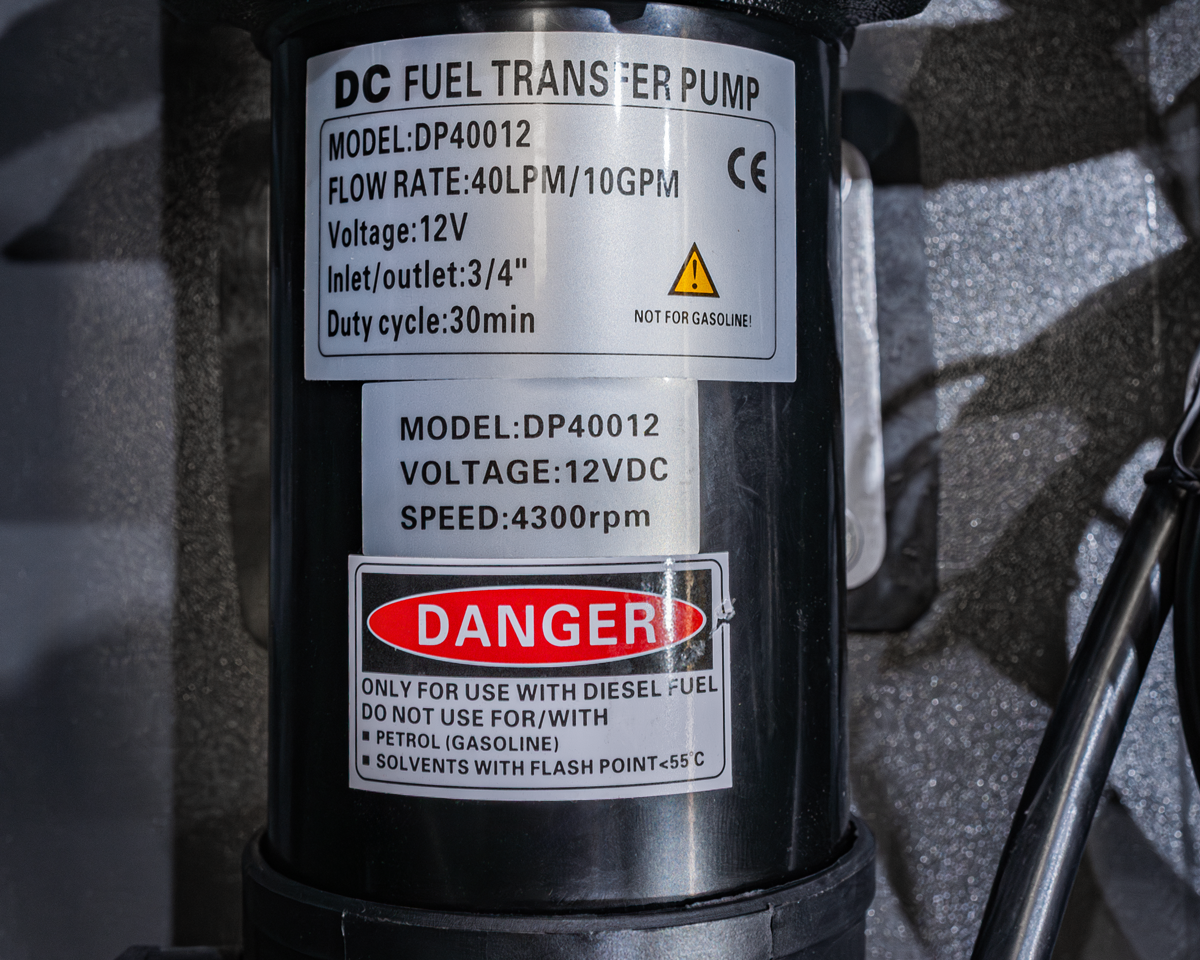

- DC fuel transfer pump, mod. DP40012 (12 V), flow rate 40 L/min for Diesel compartment

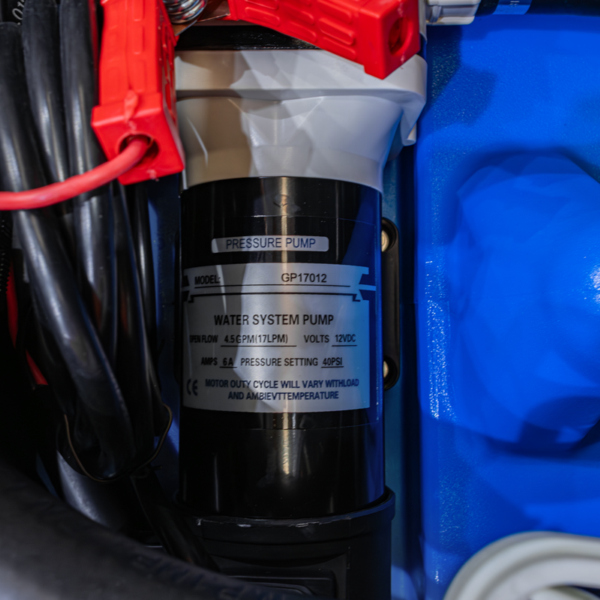

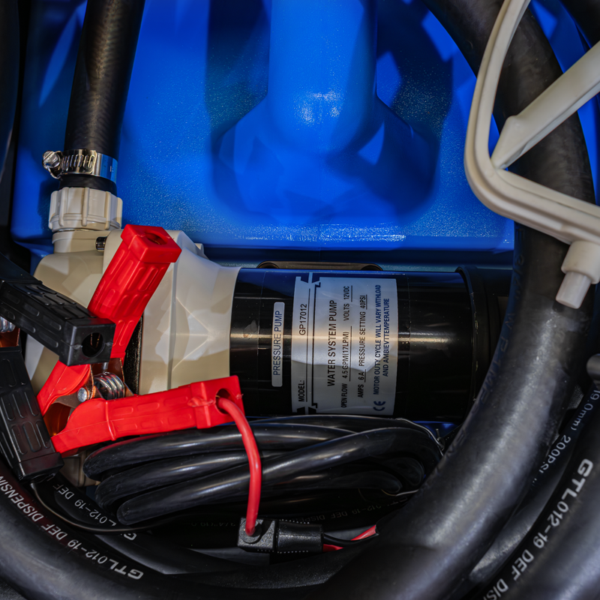

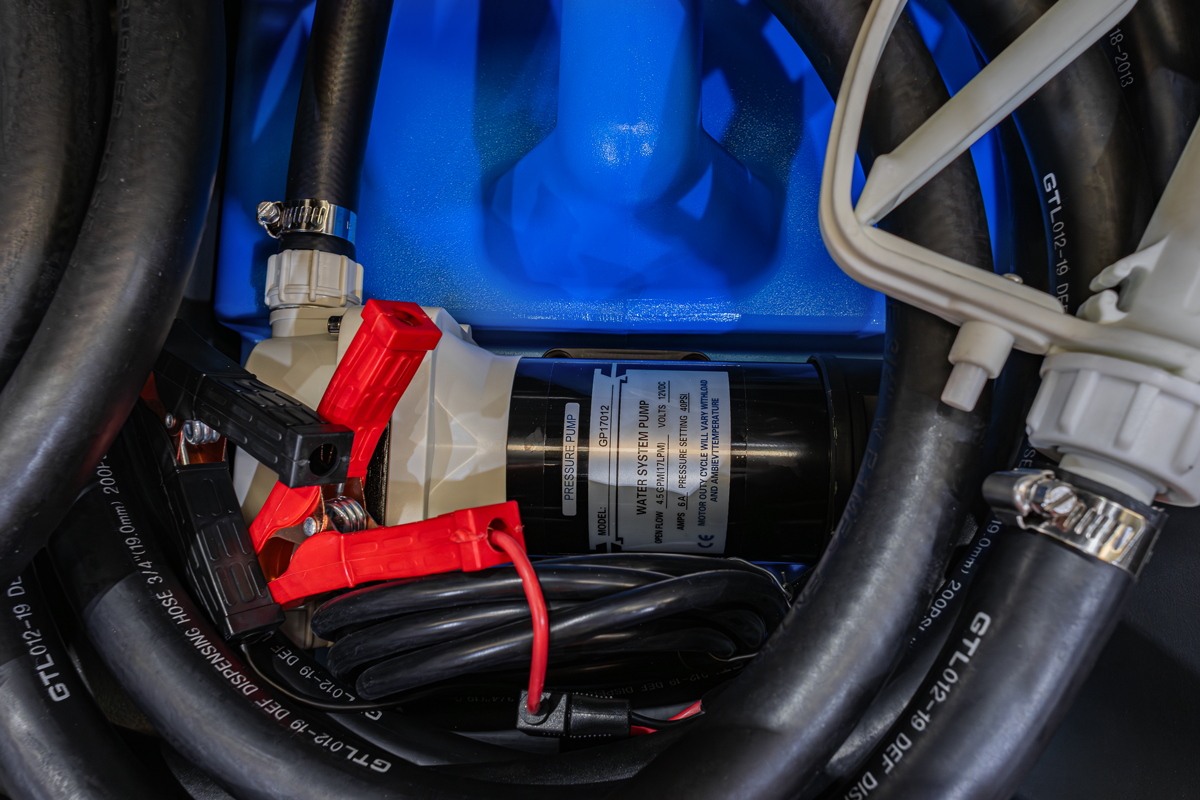

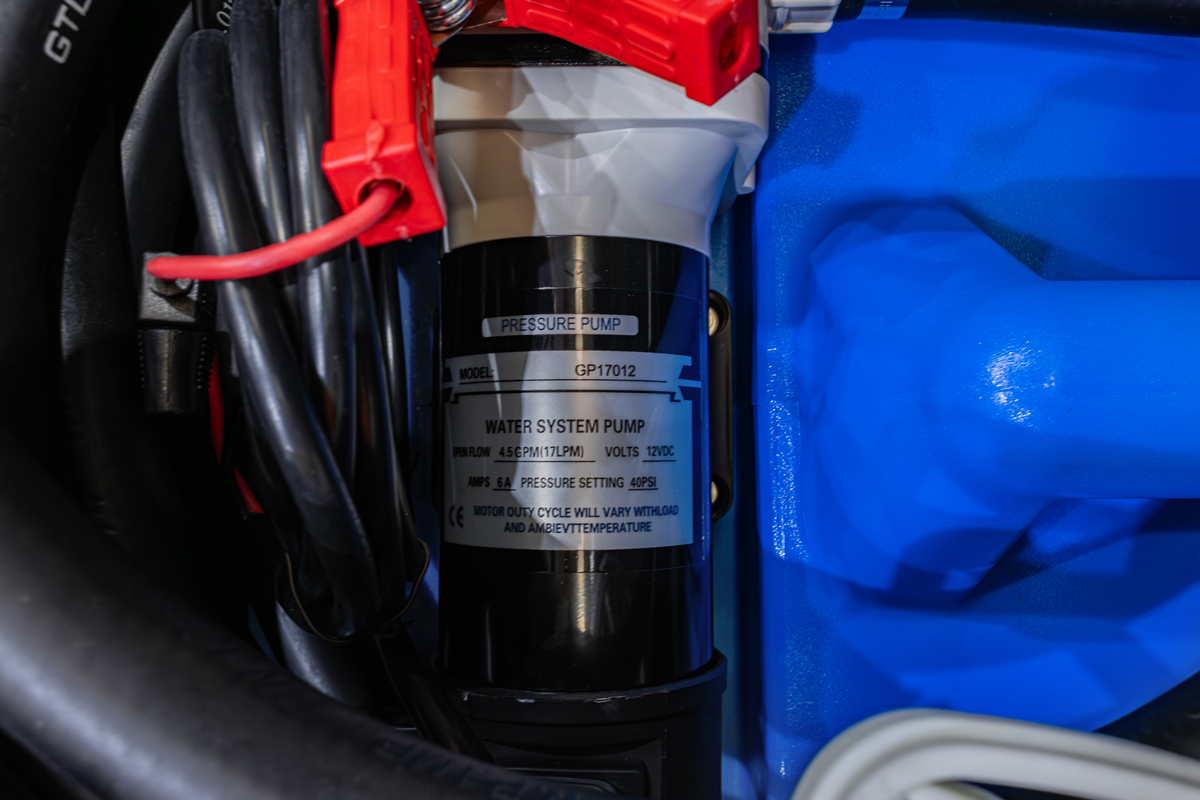

- Diaphragm pump 12 V, flow rate 17 L/min for AdBlue® compartment

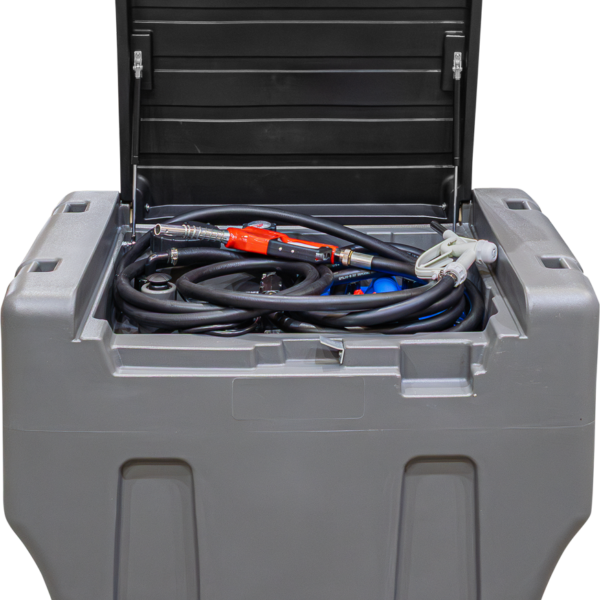

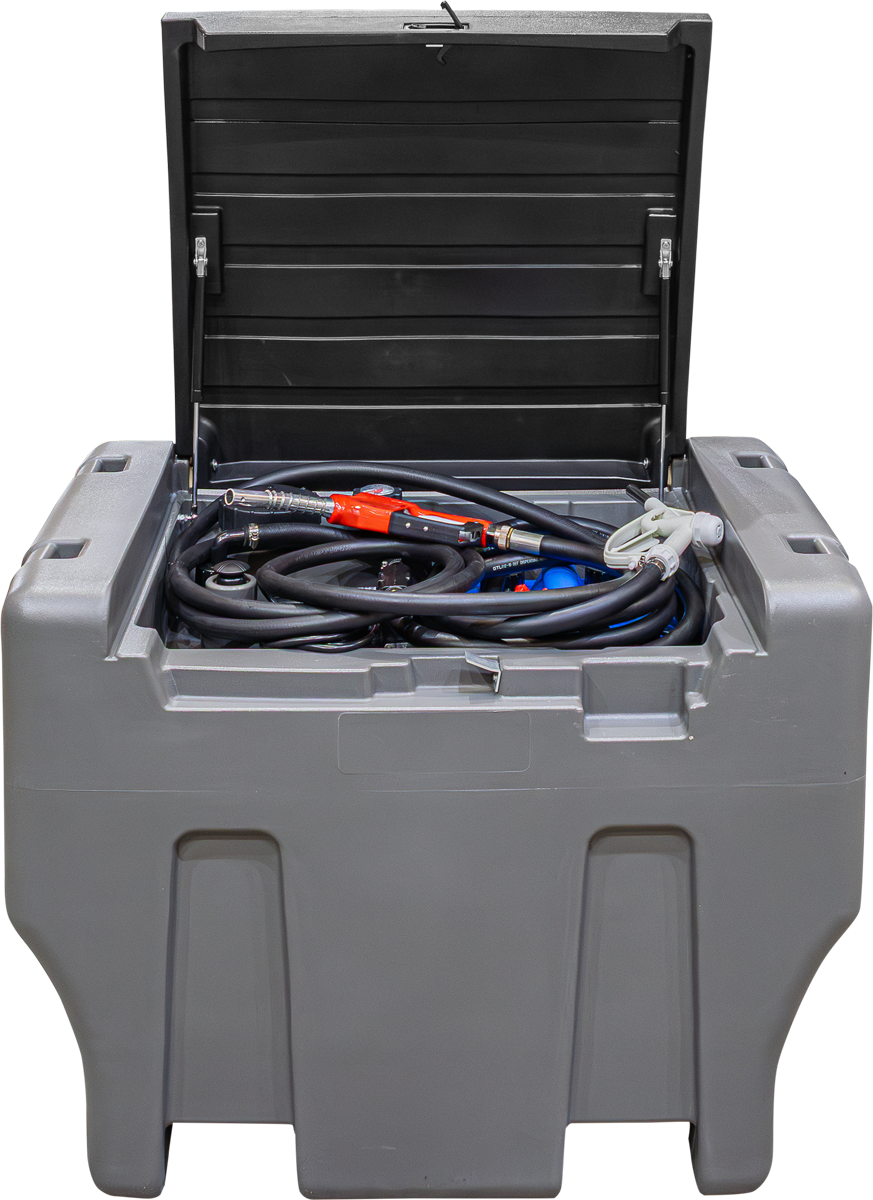

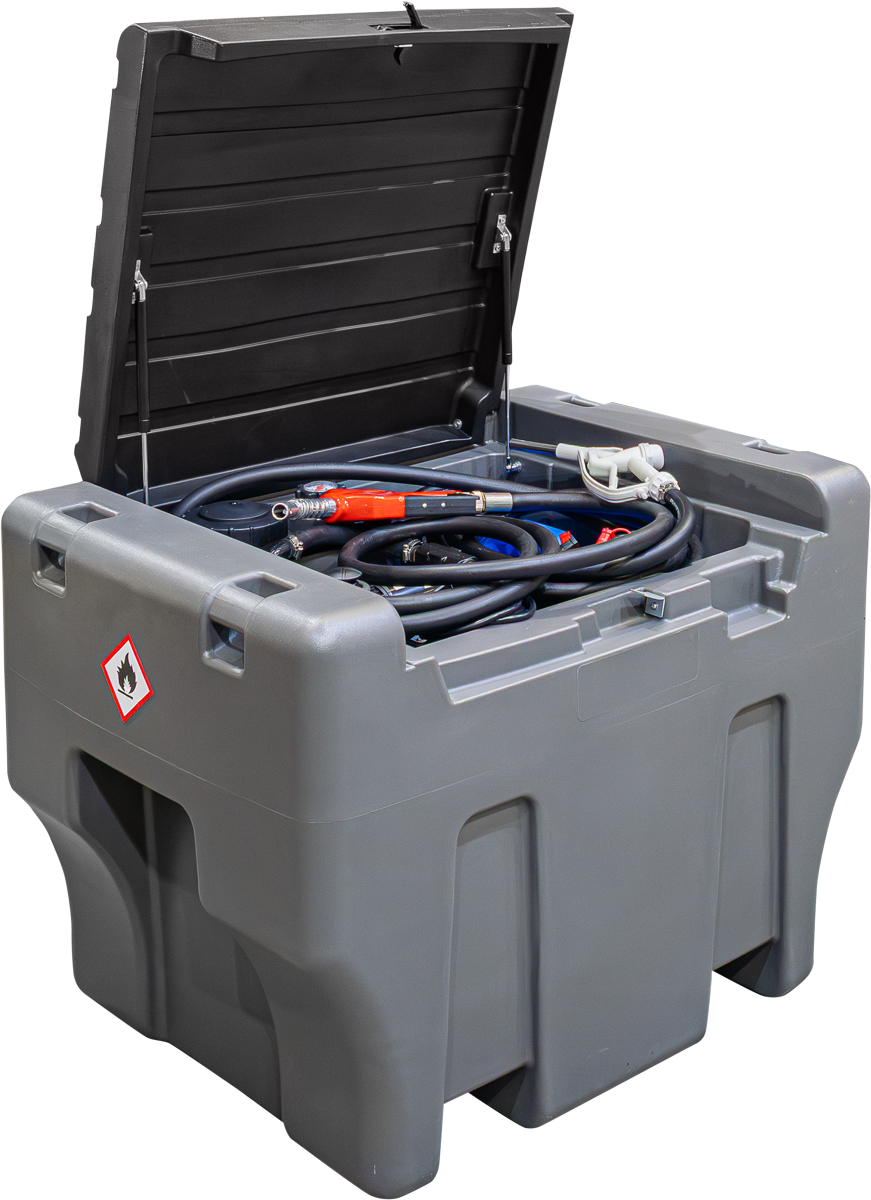

- 4 m of hose for Diesel fuel and 4 m of hose for AdBlue®.
- Automatic nozzle for Diesel fuel and manual nozzle for AdBlue®
- 4 m of battery power cable and clamps for battery connection
- Lid with lock
- Optional: digital flow meter for Diesel fuel, mod. AFM30D
- Optional: water separator filter for Diesel fuel
