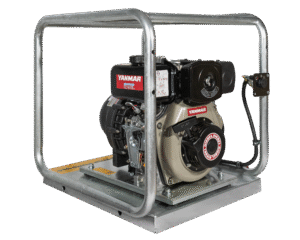

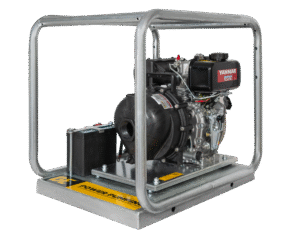

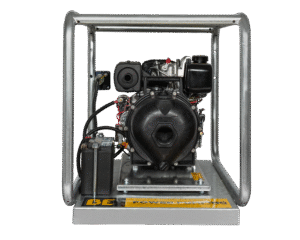

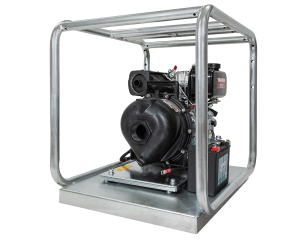

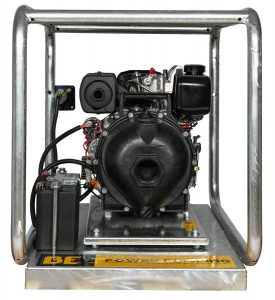

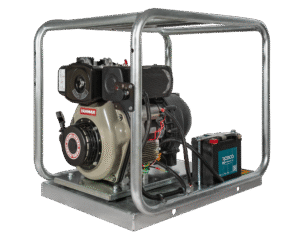

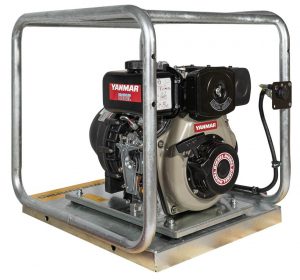

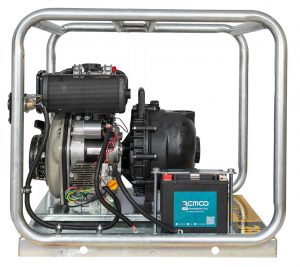

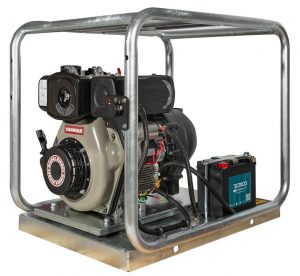

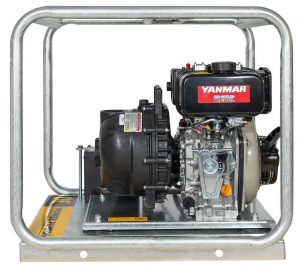

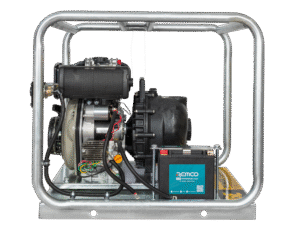

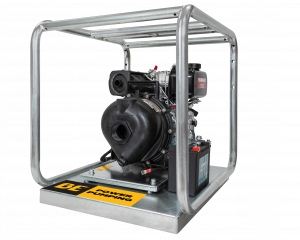

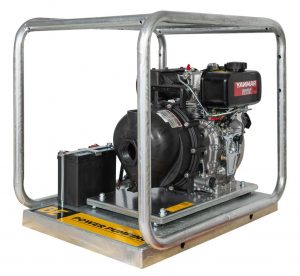

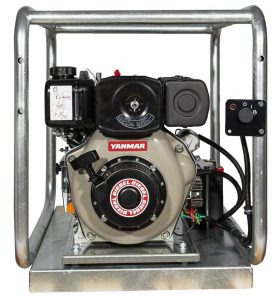

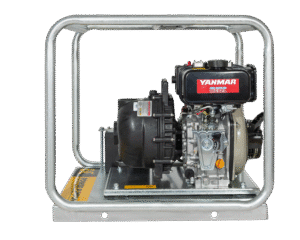

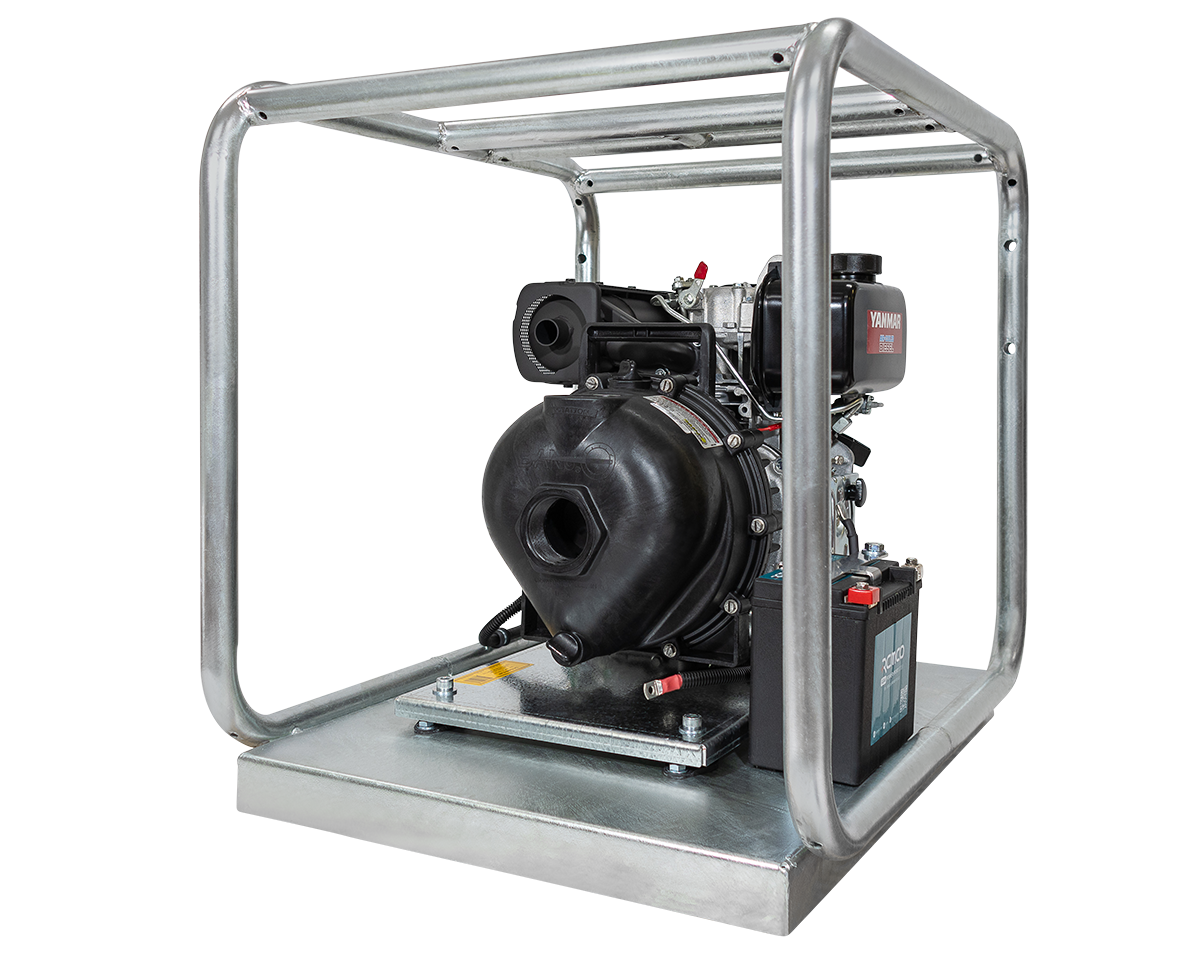

CHEMICAL TRANSFER PUMP – YANMAR DIESEL

Banjo is recognized as the world’s premier manufacturer of corrosive liquid handling injected moulded poly pumps. Precise material engineering means fewer leaks and repairs which keeps you up and running. Banjo prides itself on innovative design, skilful engineering, precise manufacturing and finding the pumping solution that works best for your liquid handling needs.

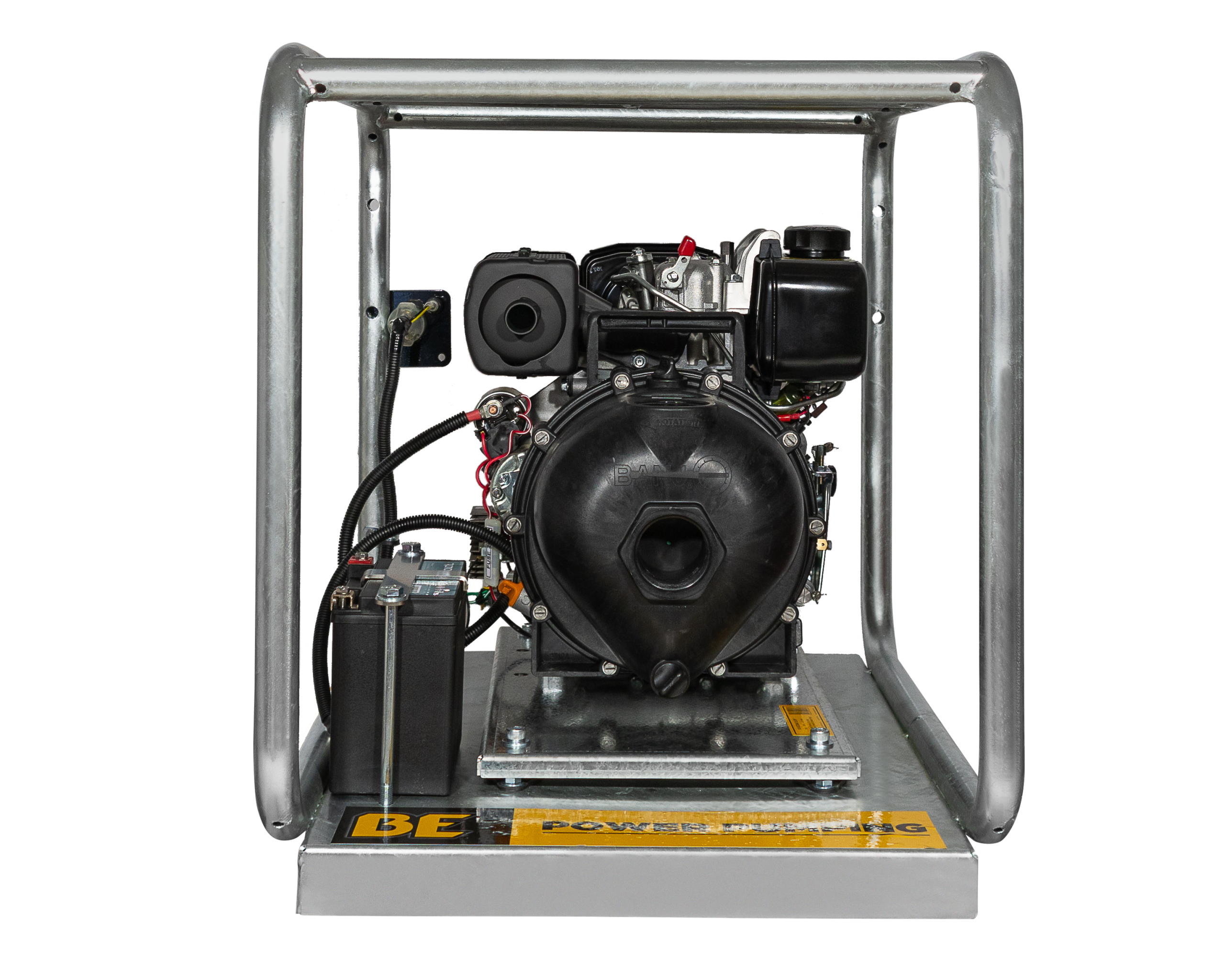

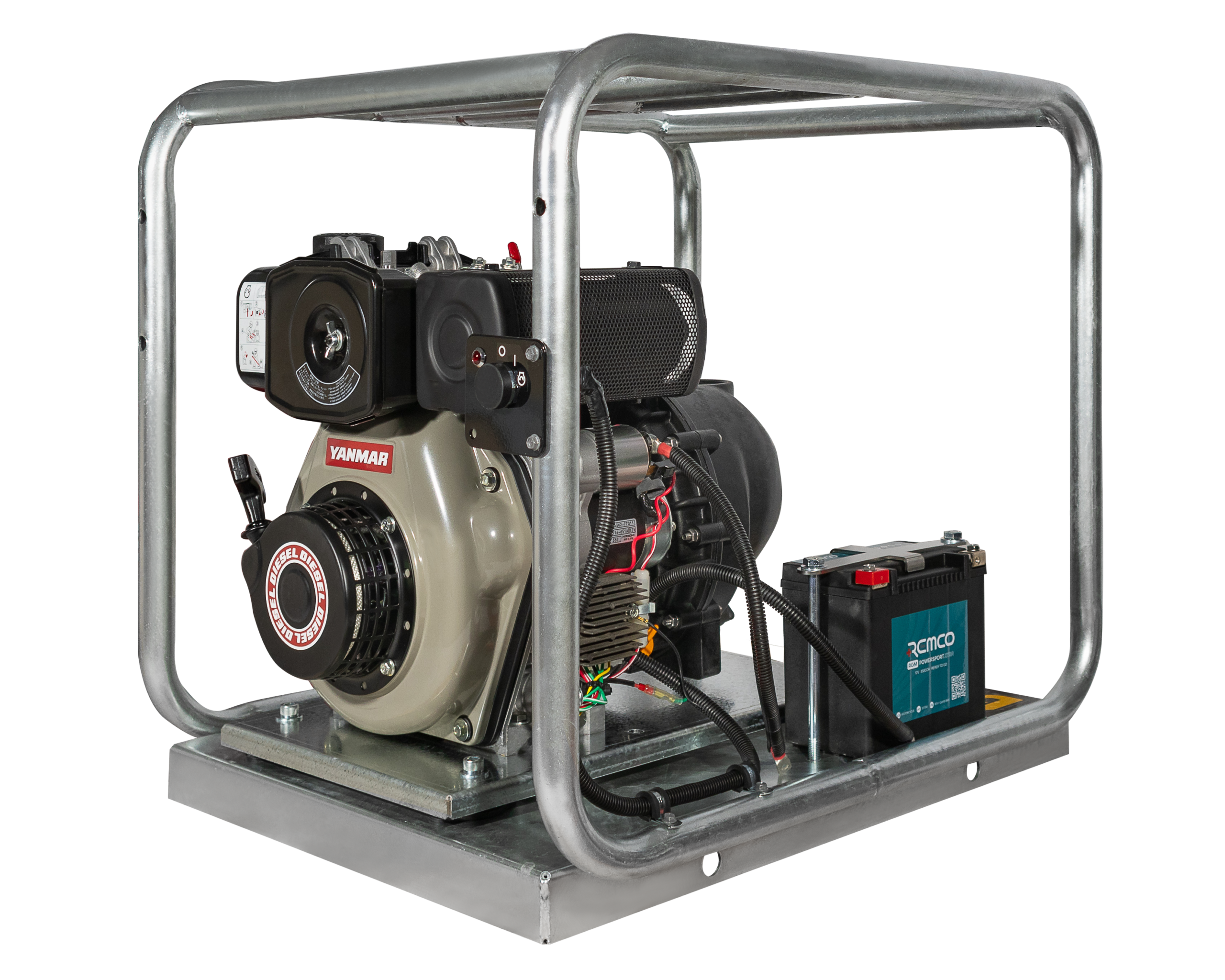

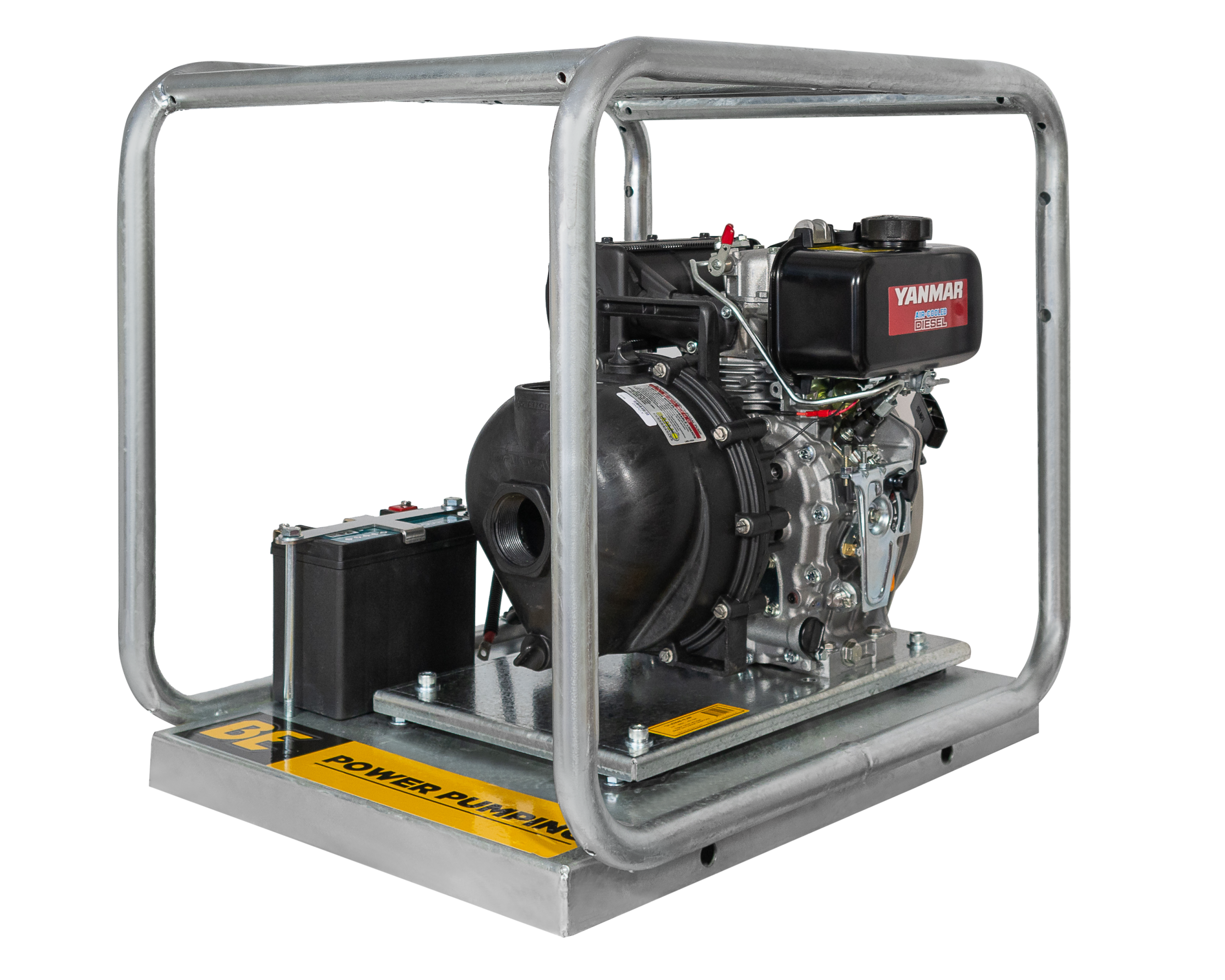

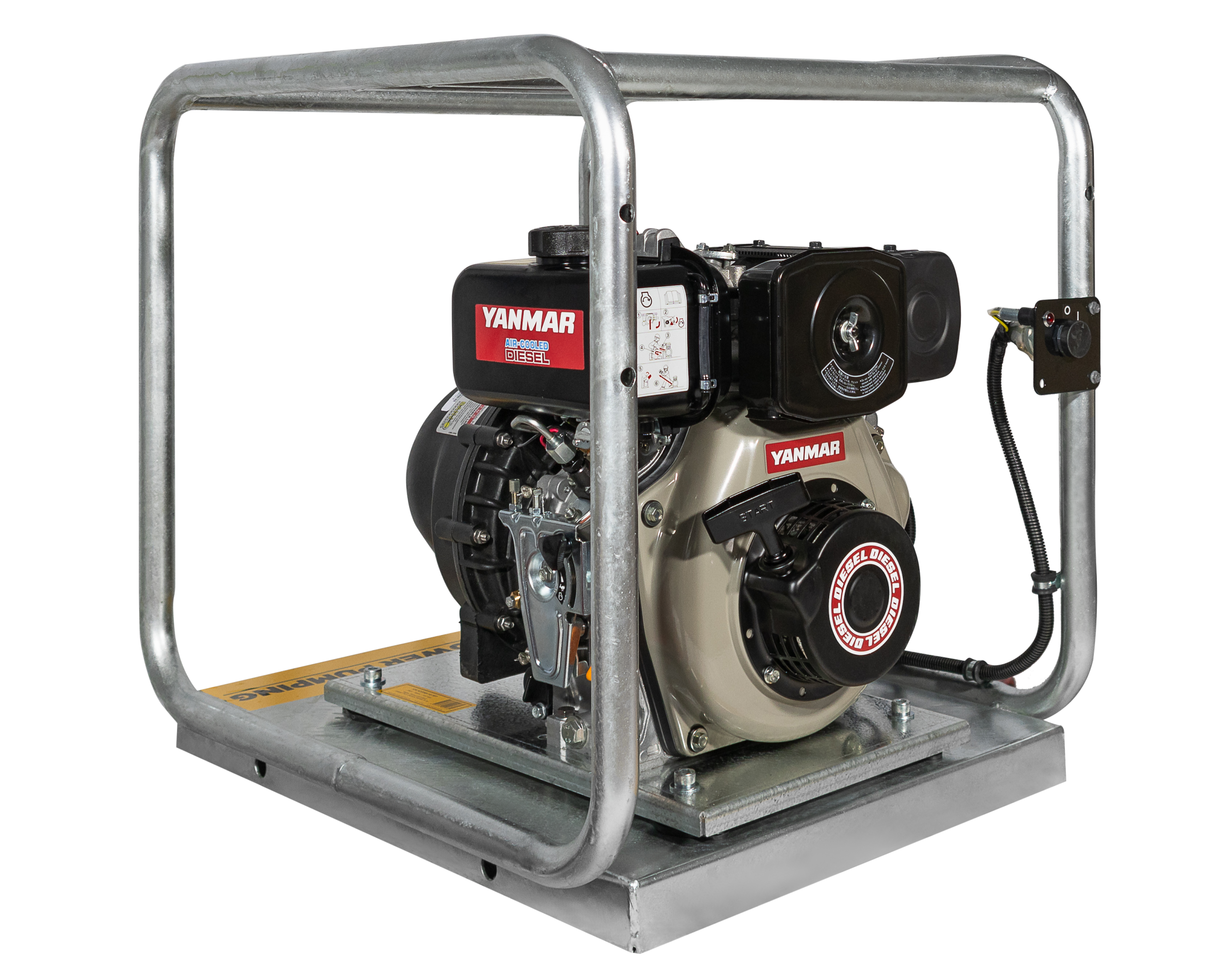

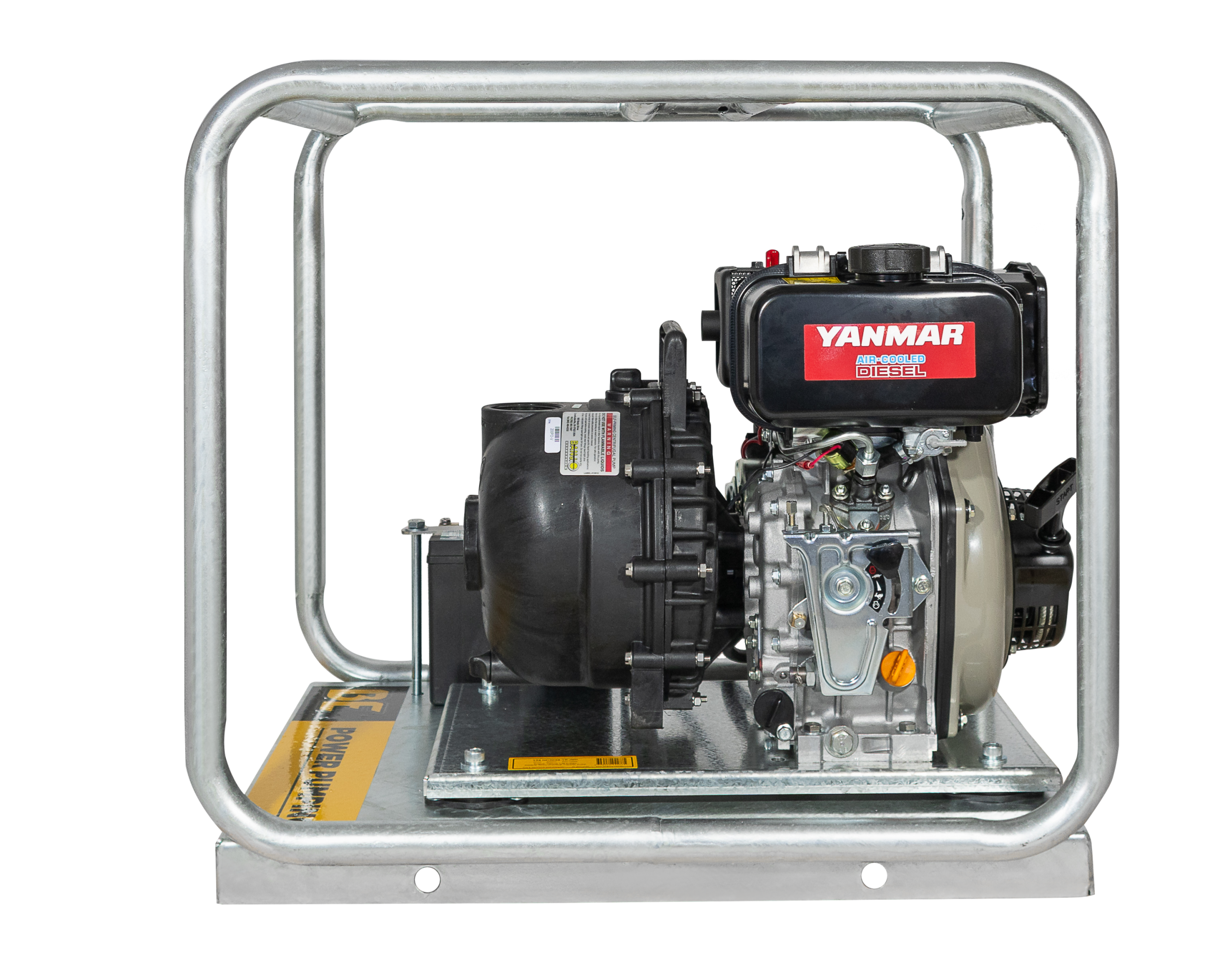

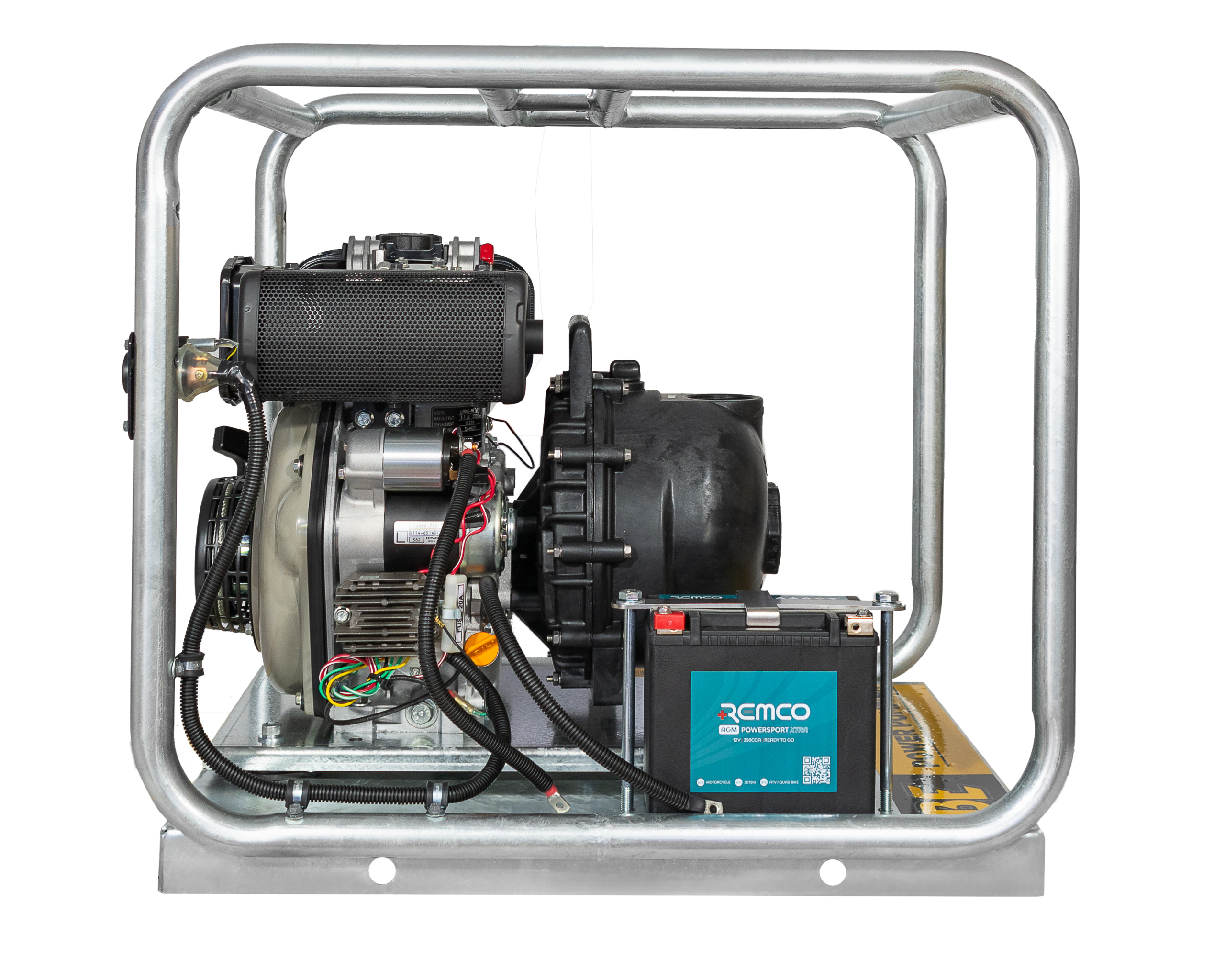

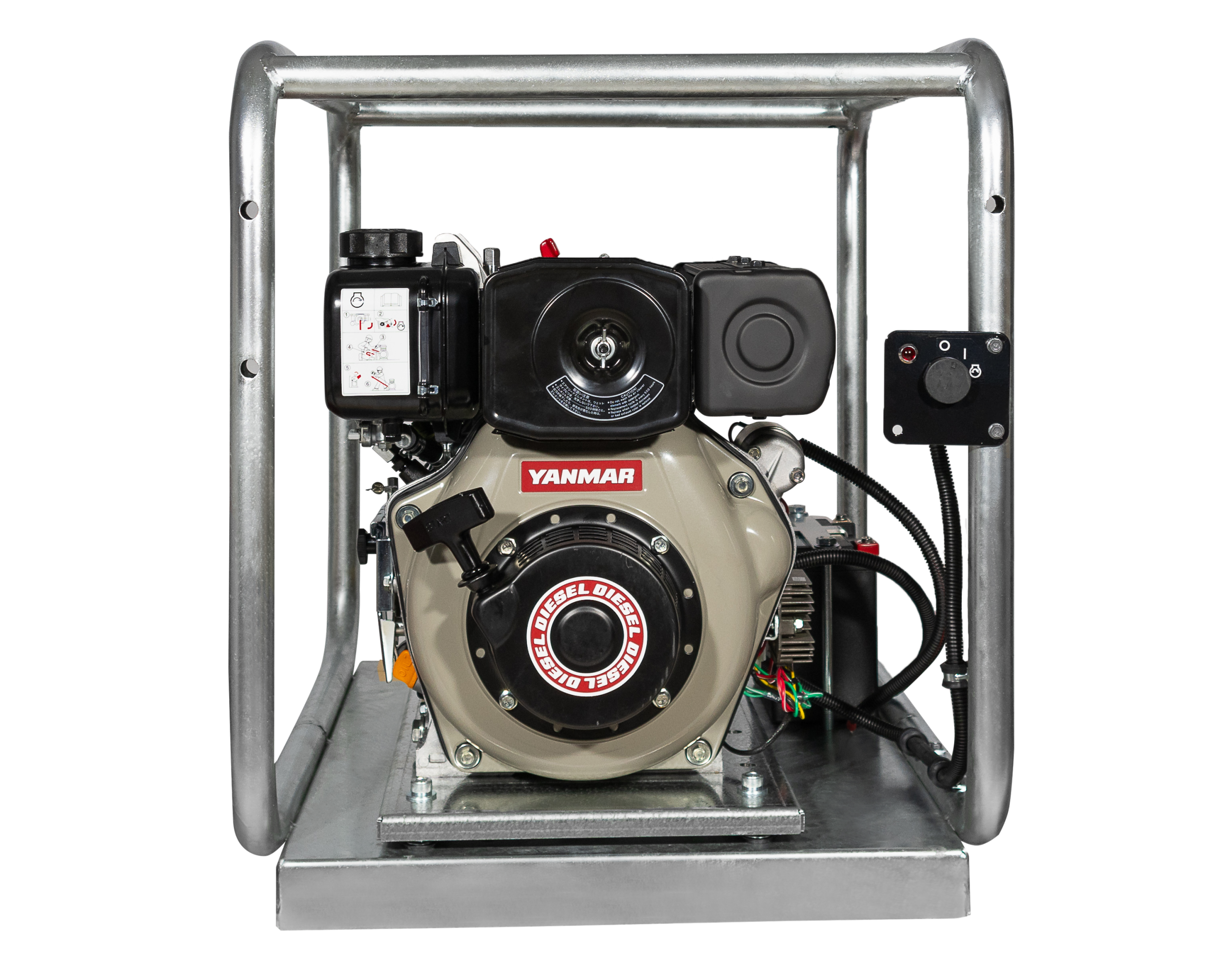

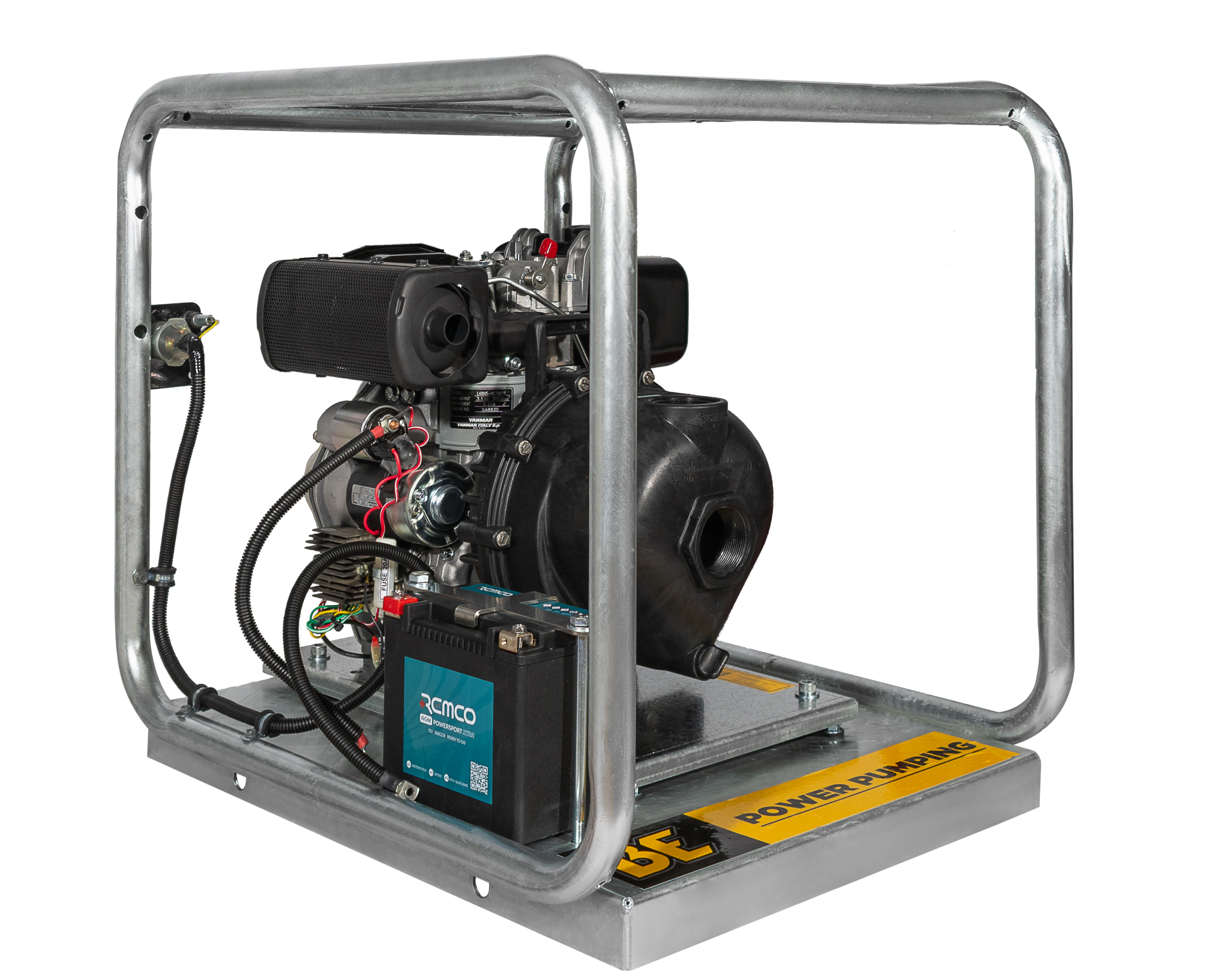

Banjo Yanmar powered poly pumps are heavy duty polypropylene pumps that are fibre glass reinforced making them suitable for pumping corrosive liquids. These high flow pumps are fitted with Viton elastomers and are available in 2” and 3” configuration.

Specifications

• Max Flow: 625 L/min
• Max Head: 35 m
• Engine: Yanmar
• HP: 4.8 hp
• Electric Start: Yes
• Inlet/Outlet: 2″
• Suction: 7.6 m
• Unit and Frame: Rugged galvanised frame with battery included.

Pump Features

• 2” NPT suction port
• 2” NPT discharge port
• Standard with viton seals
•  7.6 m vertical lift
• 3 vein impeller
• NPT to BSP thread adaptor for
  inlet /outlet Part# 124 NIP2100

Engine

• Yanmar L48 , 4.8 hp electric start diesel engine with recoil back up
• Air-cooled. 4 stroke diesel engine
• Electric ctart
• 3.5 L fuel tank
• Low oil alert
• Low vibration and low noise
• Compact , direct injection engine with low fuel consumption

Applications

• Liquid fertilizer
• Diesel fuel transfer
• Marine salvage
• High-volume water transfer
• Stock feed
• Batching units
• Ag chemical transfer
• Saltwater pumping
• Marine firefighting salvage
